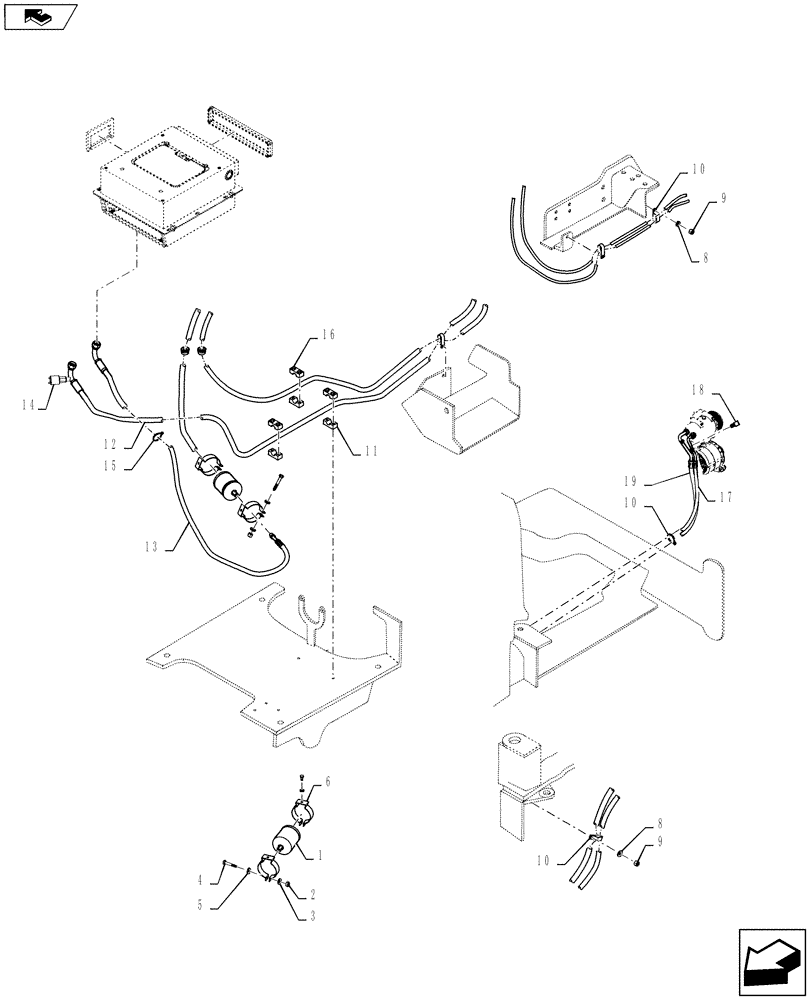

Запчасти Case 721F (50.200.02[02]) - AIR CONDITIONING - HOSES (50) - CAB CLIMATE CONTROL

1

295006A1

RECEIVER-DRYER

Reservoir

1шт.

2

832-10406

NUT,M6 x 1, Cl 8

2шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

70-6589T1

SUPPORT

Bracket, Receiver- Dryer

2шт.

7

86639188

BOLT,Hex, M6 x 1 x 40mm, Class 10.9

2шт.

8

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

31-1081

CLAMP

Double

3шт.

11

76082265

BLOCK

Tube Mounting

2шт.

12

84191332

A/C HOSE

Dryer To Cab

1шт.

13

84191331

A/C HOSE

Condensor To Dryer

1шт.

14

122579A1

SWITCH, A/C LOW PRES

A/C, Low Pressure

1шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

16

76082618

BLOCK

Tube Mounting

1шт.

17

84373400

HOSE ASSY.

Compressor-Condensor

1шт.

18

232948A1

SWITCH, A/C HIGH PRE

400PSI

1шт.

19

84373399

HOSE ASSY.

Cab-Compressor

1шт.
