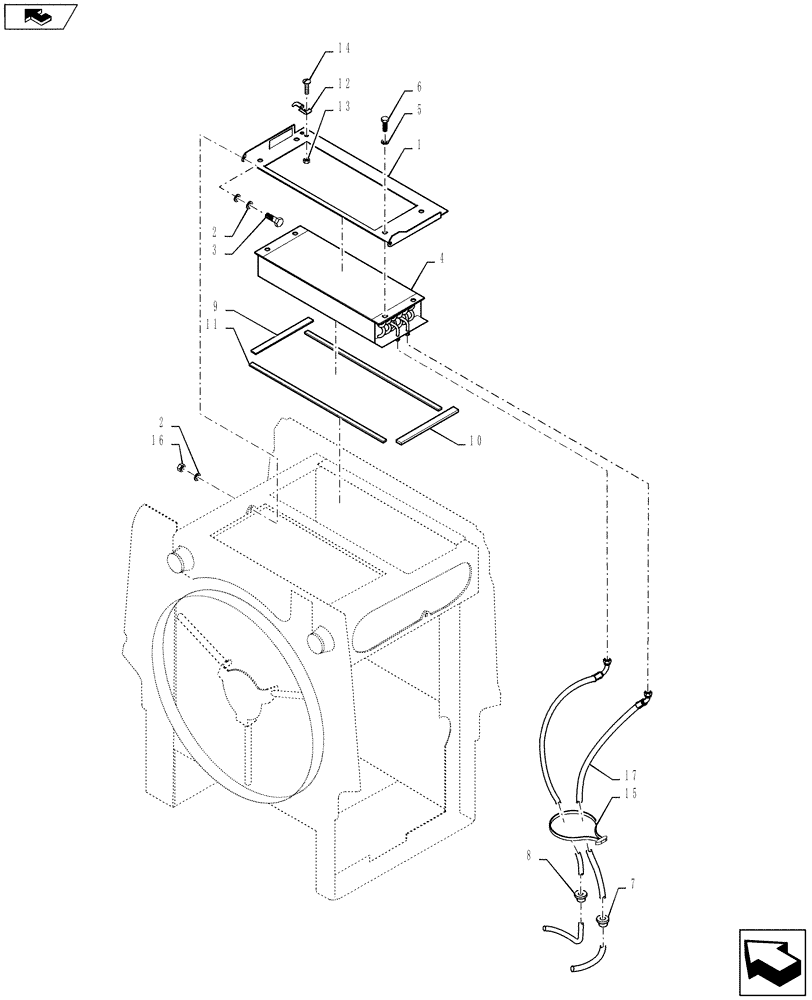

Запчасти Case 721F (50.200.02[01]) - AIR CONDITIONING - CONDENSER (50) - CAB CLIMATE CONTROL

REF

INSTRUCTION

CONDENSOR WITH AIR CONDITIONING

1шт.

1

84411602

PLATE

A/C Condensor

1шт.

2

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

3

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

4

8500878

CONDENSER

Cooler A/C

1шт.

5

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

6шт.

7

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

198573C1

STRIP

Cable Tie

1шт.

10

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

Cooler; Foam

1шт.

11

8500133

OIL SEAL

Oil Coolers, Side

2шт.

12

60-6318T91

LOCK

Latch Assy

1шт.

13

86977693

NUT,Serrated, #8 - 32, Gr 5

Serrated 8-32 GR.8 ZND

2шт.

14

81822758

SCREW,Pan, #8 - 32 x 1/2"

2шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

16

86528579

NUT,M8 x 1.25

2шт.

17

84191331

A/C HOSE

Condensor To Dryer

1шт.
