(50.104.02) - HEATER - MOUNTING

Запчасти Case 721F (50.104.02) - HEATER - MOUNTING (50) - CAB CLIMATE CONTROL

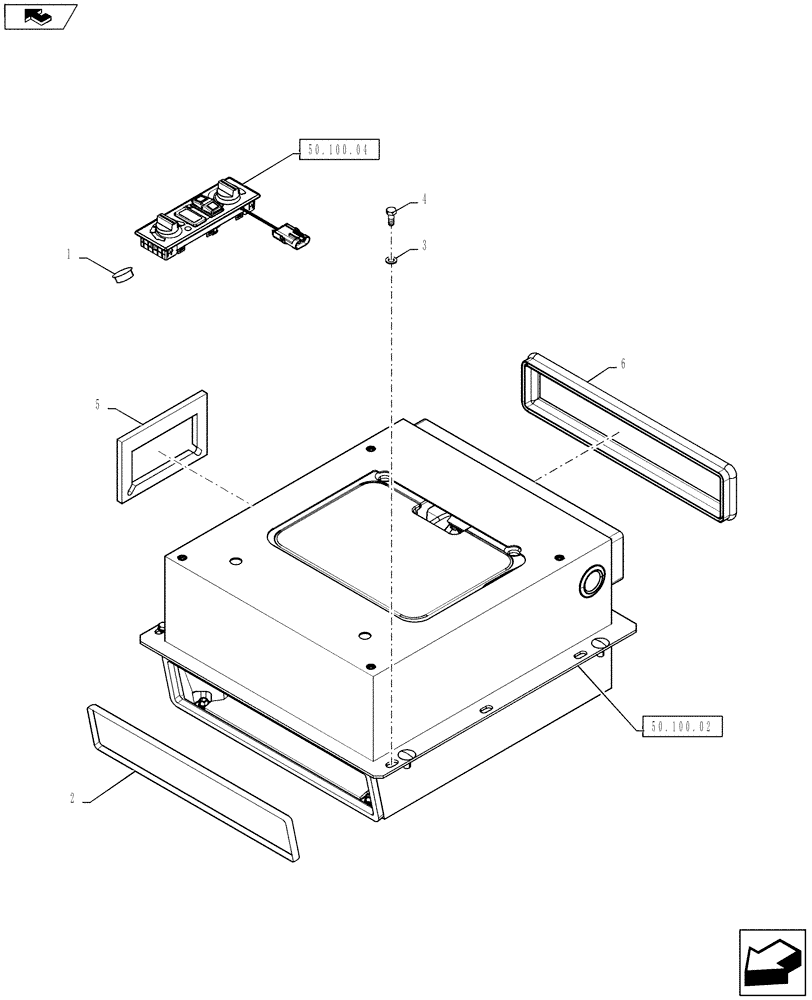

Схема запчастей Case 721F - (50.104.02) - HEATER - MOUNTING (50) - CAB CLIMATE CONTROL
2
50.100.04
5
50.100.02
4
3
home
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84192330

HEATER

Assy; Production Number Only, Order Component Parts; See Figure 50.100.03

1шт.

1

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

2

76303496

GASKET,10mm Thk

Front Air Manifold

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

76303497

GASKET

Air Intake

1шт.

6

87651073

SEAL

Seal

1шт.
