Запчасти Case 721F (50.104.01) - HEATER - INSTALLATION CAB (NA) (50) - CAB CLIMATE CONTROL

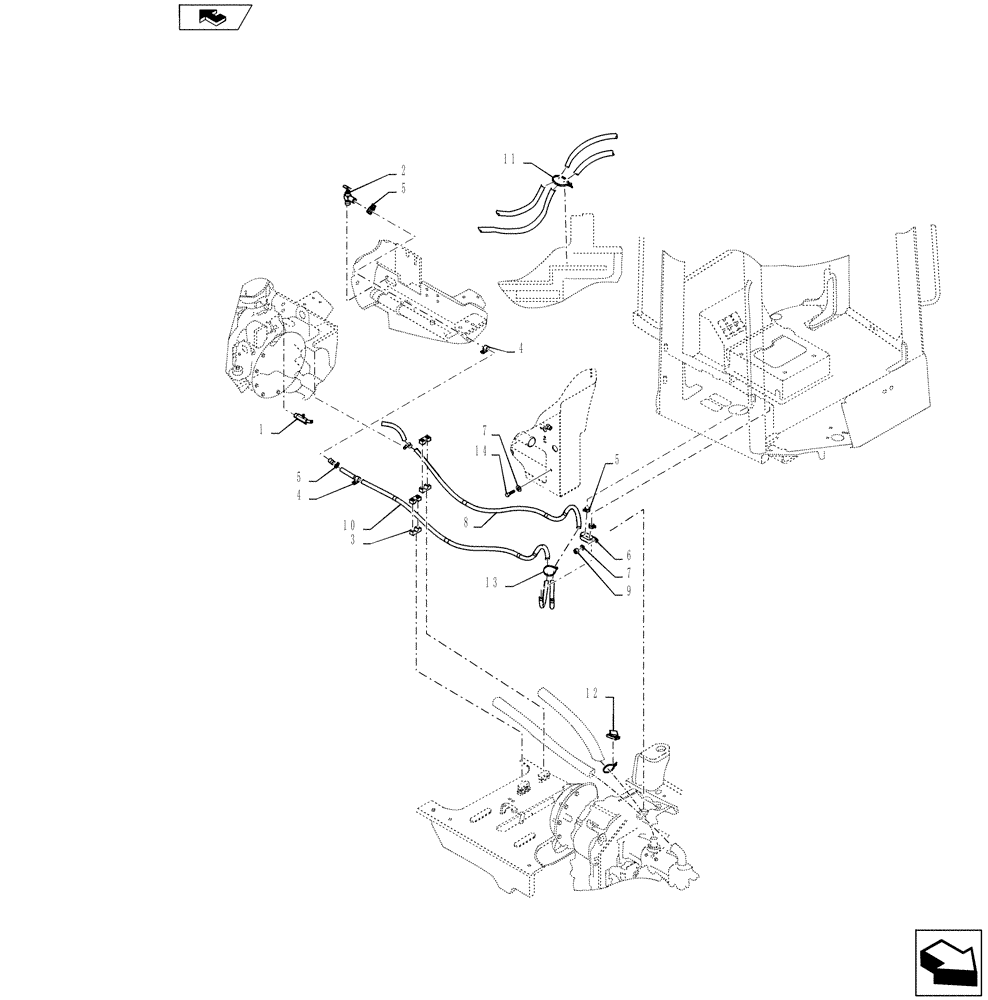

Схема запчастей Case 721F - (50.104.01) - HEATER - INSTALLATION CAB (NA) (50) - CAB CLIMATE CONTROL
1
home
10
4
7
8
3
5
12
2
6
14
11
13
9
5
4
5
7

Артикул

Название

Примечание

Количество

1

84230410

ADAPTER

3/4-14NPTF TO 5/8 & 3/8

1шт.

2

301803R1

SHUT-OFF VALVE

90 Deg

1шт.

3

367489A1

BLOCK

Tube Mounting

3шт.

4

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

5

1954736C1

HOSE CLAMP,#24

4шт.

6

31-1081

CLAMP

Double

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

8

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

High-Temp, Heater Return

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

1975801C1

HEATER HOSE,15.50 mm ID x 2743.00 mm

High-Temp, Heater Supply

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

Strap, Black 25x60 Nylon

1шт.

12

84266053

TUBE SPACER

Swivel

1шт.

13

84266050

CABLE TIE,384mm L, Polyamide

Strap

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 14
