Артикул
Название
Примечание
Количество

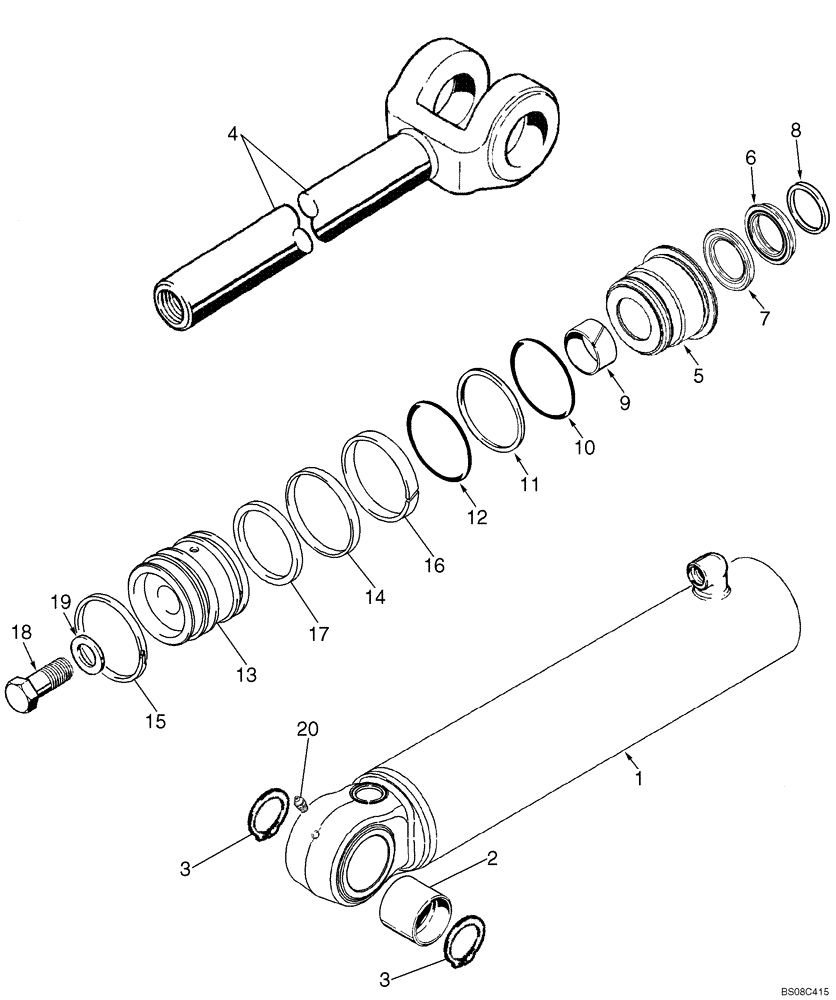

87452362
STEERING CYLINDER
76 ID x 485 strk; Incl. Refs. 1 - 20
2шт.
87452362R
REMAN-HYD CYLINDER
721F WHEEL LOADER - TIER 4 / TIER 2 (NA), 76 ID x 485 strk
2шт.
87452362C
CORE-HYD CYLINDER
Return Number
2шт.
8605261
SEAL KIT
Steering Cylinder; Incl. Refs. 6 - 12, 14 - 16, Also Incl. Seal G102288 Which Is Not Used In This Application
1шт.
1
442702A1
TUBE
Incl. Refs. 2, 3
1шт.
2
442711A1
BUSHING,39.99mm ID x 62mm OD x 28mm W
Eye
1шт.
4
442703A1
PISTON ROD
1шт.
442704A1
GLAND
Assembly; Incl. 5 - 12
1шт.
5
442713A1
GLAND
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL, ROD
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL, BUFFER
1шт.
8
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
Wiper
1шт.
9
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
Bearing Rod
1шт.
10
238-5233
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
1шт.
11
G109298
RING,69.47mm ID x 75.57mm OD x 1.4mm Thk
1шт.
12
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
1шт.
87452364
PISTON
PISTON, Assembly; Incl. Refs. 13 - 17
1шт.
13
87452365
JACK PISTON
Flange 7.19mm Thick
1шт.
15
364376A1
RING,Locking, 68.88mm ID x 76.1mm OD x 4.74mm Thk
Cast Iron
1шт.
17
442717A1
SEAL
Piston
1шт.
18
86982439
SPECIAL BOLT,Hex, 14, 1 x 4"
Bolt and Washer; Incl. Ref. 19
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
Выбрано товаров: 27
