Запчасти Case 721F (41.200.13[02]) - PRIORITY PUMP INSTALLATION (41) - STEERING

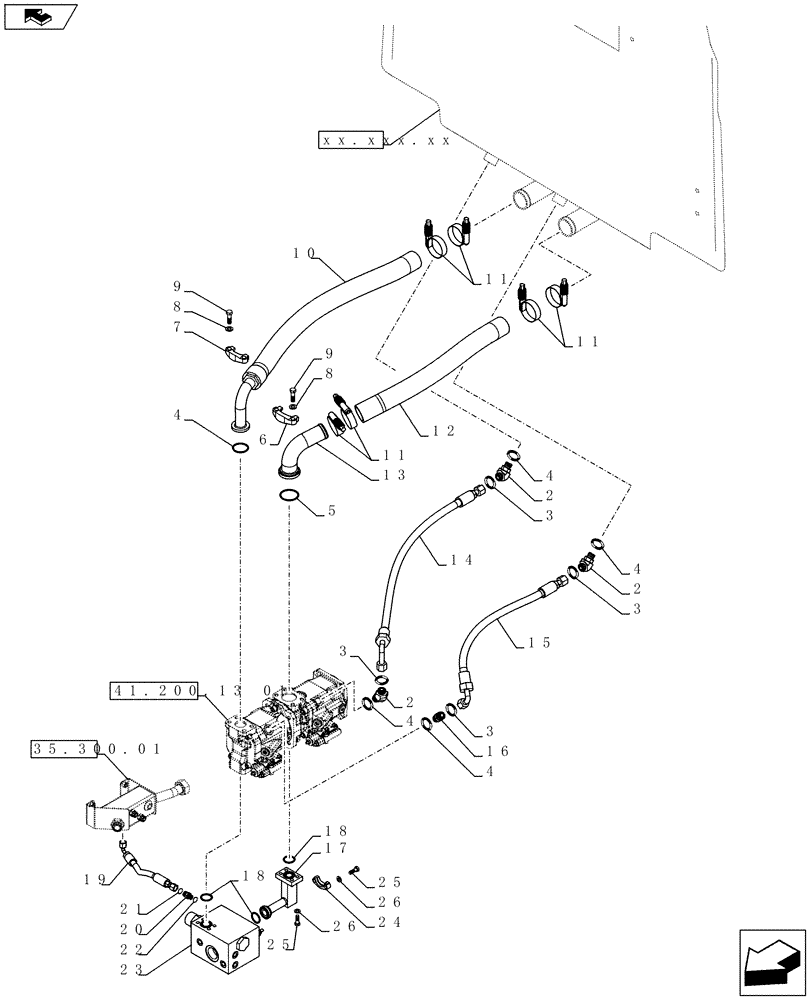

Схема запчастей Case 721F - (41.200.13[02]) - PRIORITY PUMP INSTALLATION (41) - STEERING
7
4
24
6
20
12
11
4
18
4
35.300.01
23
2
9
2
2
13
26
25
9
21
5
25
15
3
22
4
3
11
17
10
14
3
xx.xxx.xx
26
8
8
18
home
19
3
41.200.13 01
16
11
4

Артикул

Название

Примечание

Количество

1

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

2

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 3, 4

3шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

Split Half Clamp 2.00

2шт.

7

A14157

FLANGE

Split Half Clamp 1.50

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

10

8501009

FLEXIBLE HOSE

Small; Pump Suction

1шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

6шт.

12

8602648

HYDRAULIC HOSE,50.80 mm ID x 645.00 mm, SAE 100R4 Class 4 Type 2

Large Pump Suction

1шт.

13

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction; Plated

1шт.

14

87318402

HOSE ASSY.

Small; Case Drain

1шт.

15

84303150

HOSE ASSY.

Large; Case Drain

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 3, 4

1шт.

17

87758250

TUBE,116.7, 97 mm L

Pump Discharge ZP

1шт.

18

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

19

87367960

HOSE ASSY.

Priority Tank

1шт.

20

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Ref. 21, 22

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

87539260

VALVE

Steering Priority

1шт.

24

A12306

FLANGE

Split Half Clamp 1.00

2шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

Выбрано товаров: 26
