Запчасти Case 721F (41.200.12) - VALVE ASSY - STEERING, AUXILIARY (41) - STEERING

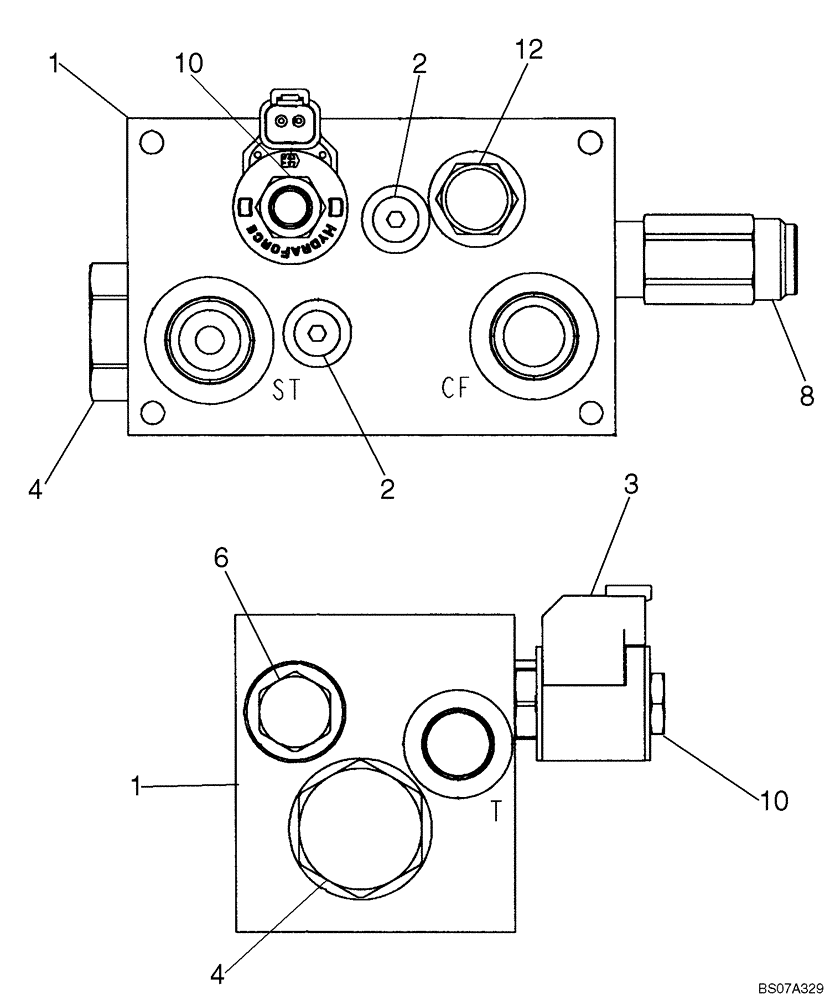

Схема запчастей Case 721F - (41.200.12) - VALVE ASSY - STEERING, AUXILIARY (41) - STEERING
10
12
1
6
4
4
8
3
1
2
10
2

Артикул

Название

Примечание

Количество

1

87609806

MANIFOLD

Auxiliary Steering; Incl. 2 - 13

1шт.

2

87365409

PLUG

Orifice

1шт.

3

87617170

COIL

Solenoid

1шт.

4

87365418

CHECK VALVE

Incl. Ref 5

1шт.

5

87365420

SEAL KIT

Check Valve; Not Illustrated

1шт.

6

87365422

CHECK VALVE

Incl. Ref. 7

1шт.

7

1542831C1

SEAL KIT

Check Valve; Not Illustrated

1шт.

8

87365425

VALVE, PRESSURE RELI

EF Incl. Ref. 9

1шт.

9

87365424

SEAL KIT

Valve, Pressure Relief; Not Illustrated

1шт.

10

87365427

SPOOL

3-Way; Incl. Ref. 11

1шт.

11

87365429

SEAL KIT

Spool; Not Illustrated

1шт.

12

87365430

ELEMENT

Logic; Incl. Ref. 13

1шт.

13

87365429

SEAL KIT

Element; Not Illustrated

1шт.

Выбрано товаров: 13
