(41.200.12[01]) - JOYSTICK CONTROL, VALVE ASSEMBLY

Запчасти Case 721F (41.200.12[01]) - JOYSTICK CONTROL, VALVE ASSEMBLY (41) - STEERING

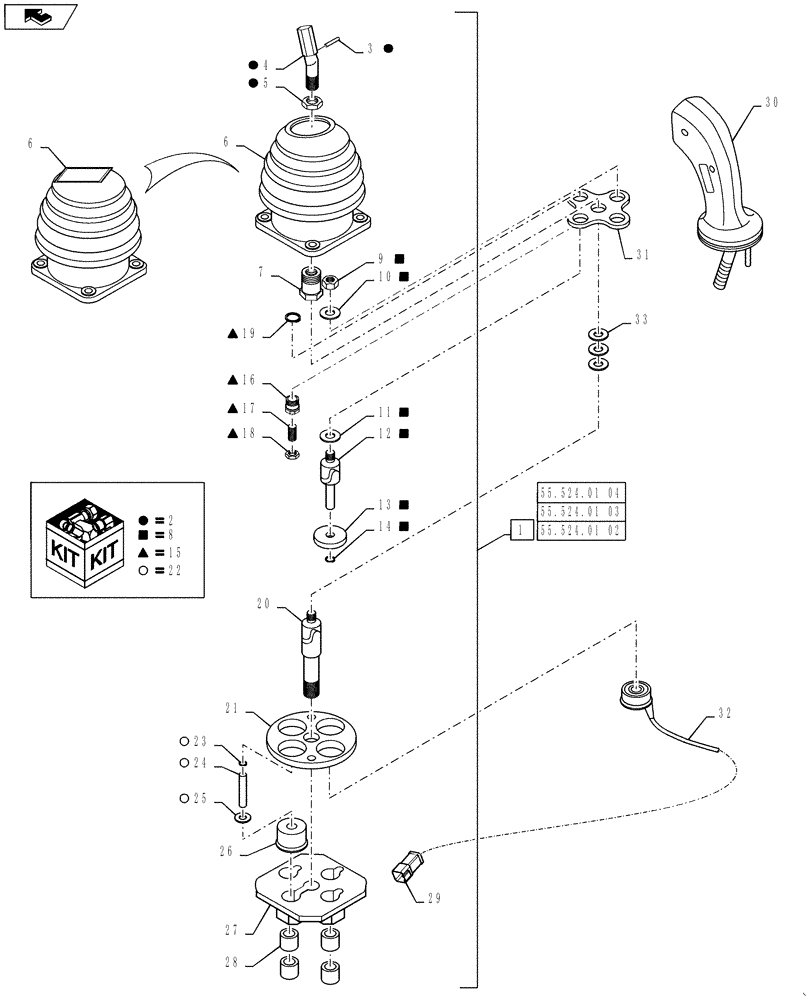

Схема запчастей Case 721F - (41.200.12[01]) - JOYSTICK CONTROL, VALVE ASSEMBLY (41) - STEERING
home
11
19
20
8
23
15
8
8
55.524.01 03
15
4
2
7
10
8
22
8
2
26
15
32
1
3
18
9
24
5
2
6
8
17
28
31
8
22
22
2
55.524.01 02
13
15
21
12
25
16
14
15
55.524.01 04
29
6
33
27
15
2
8
22
30
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340016

JOYSTICK

Joystick; Incl. 1 - 29; Incl. Refs. Fig 55.524.01 (02)

1шт.

1

87340017

JOYSTICK

Joystick W/ Single Lever; Incl. Refs. 1 - 29; Incl. Fig 55.524.01 (02) (03)

1шт.

1

87340019

JOYSTICK

Joystick W/ Dual Lever; Incl. Refs. 1 - 29; Incl. Fig 55.524.01 (04)

1шт.

2

410108A1

KIT

Joystick; Incl. Refs. 3 - 5

1шт.

3

Included in 2

1шт.

4

Included in 2

1шт.

5

829-1412

NUT,M12, Cl 10.9

Included in 2

1шт.

6

8604595

BOOT

Round Boot Top Shape

1шт.

6

84123236

BOOT

Square Boot Top Shape

1шт.

7

8604528

LOCK NUT

M12

1шт.

8

8604530

KIT

Shaft Detent; Include 9 - 14

3шт.

9

Nut, Lock, Included in 8

1шт.

10

Washer, Includedl in 8

1шт.

11

Washer, Includedl in 8

1шт.

12

Shaft, Includedl in 8

1шт.

13

Armature, Includedl in 8

1шт.

14

Ring, Snap, Includedl in 8

1шт.

15

8604531

KIT

Non-Detent Plunger; Use In Non-Detent Port 2; Incl. 16 - 19

1шт.

16

M16, Screw, Included With 15

1шт.

17

M8 x 16, Screw, Included With 15

1шт.

18

Nut, Included With 15

1шт.

19

Ring, Snap, Included With 15

1шт.

20

8604533

SHAFT

1шт.

21

8604534

FLANGE

1шт.

22

8604536

REPAIR KIT

Plunger; Incl. 23 - 25

1шт.

23

Ring, Snap, Included With 22

1шт.

24

Plunger,Included With 22

1шт.

25

Washer,Included With 22

1шт.

26

8604537

GUIDE

Plunger

1шт.

27

8604538

BRACKET

1шт.

28

8604539

BUSHING

Set Of Four

1шт.

29

8604527

KIT

6 Pin Deutsch Connector

1шт.

30

87372088

JOYSTICK

1шт.

31

8604529

BRACKET

1шт.

32

8604535

SOLENOID

24V; Use In Detent Ports, 1, 3, 4; Component Parts Not Serviced Separately

3шт.

33

8604532

SHIM

Set Of Three

1шт.
