Запчасти Case 721F (41.200.06[01]) - JOYSTICK AUXILIARY STEERING (41) - STEERING

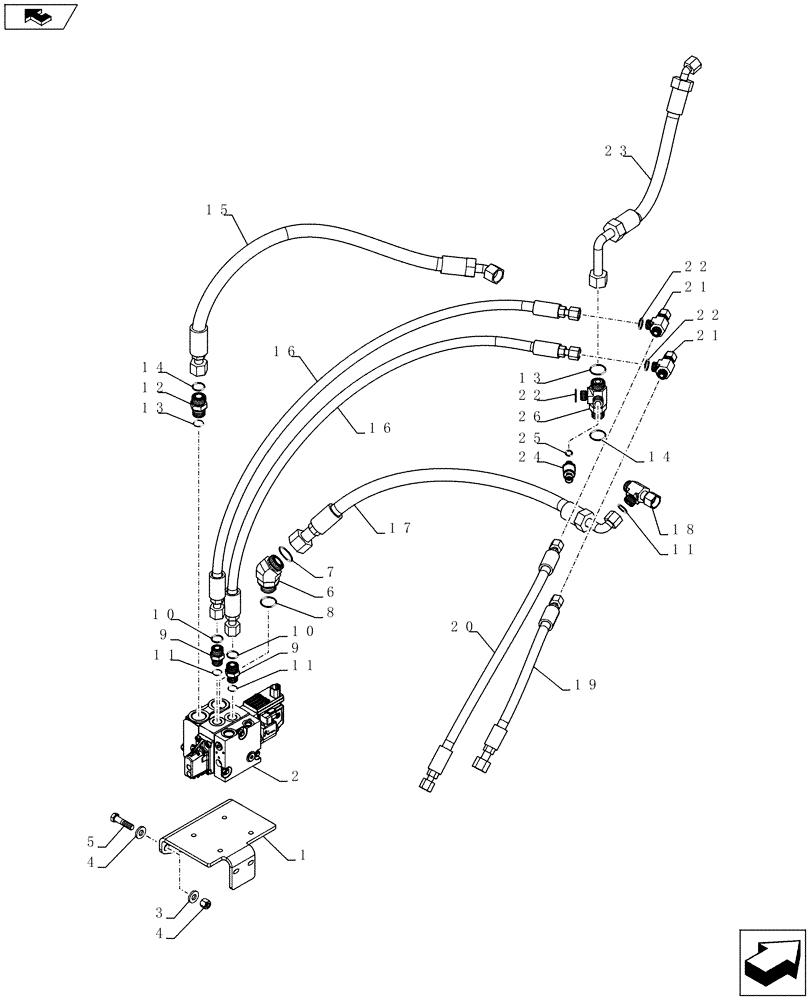

Схема запчастей Case 721F - (41.200.06[01]) - JOYSTICK AUXILIARY STEERING (41) - STEERING
12
5
2
10
13
15
home
6
20
22
1
8
9
22
13
19
23
9
11
11
3
14
17
16
16
7
11
21
4
10
14
25
18
21
22
26
4
24

Артикул

Название

Примечание

Количество

1

87739320

BRACKET

Valve Steering

1шт.

2

84238869

STEERING VALVE

PVG32 100 l/m

1шт.

3

412126

NUT,M12 x 1.75

3шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

5

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

6

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl. Ref. 7, 8

1шт.

7

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

9

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl. Ref. 10, 11

2шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

12

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. Ref. 13, 14

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

84165276

HOSE ASSY.

Suction Valve

1шт.

16

87739323

HOSE ASSY.

To Cylinder

2шт.

17

84165268

HOSE ASSY.

To Tank

1шт.

18

84989850

3 WAY CONNECTION

Incl. Ref 11

1шт.

19

87492558

HOSE ASSY.

Right Side Rod

1шт.

20

87492561

HOSE ASSY.

Steering Cylinder

1шт.

21

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl. Ref. 22

2шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

23

84217269

HOSE ASSY.

Return Orbitrol

1шт.

24

87363483

SENDER UNIT

1шт.

25

1411987

SEALING RING

SEALRING For Sender Unit

1шт.

26

84217266

UNION TEE

Inc. Ref. 13, 14, 22

1шт.

Выбрано товаров: 26
