Запчасти Case 721F (41.200.05[02]) - JOYSTICK STANDARD STEERING (41) - STEERING

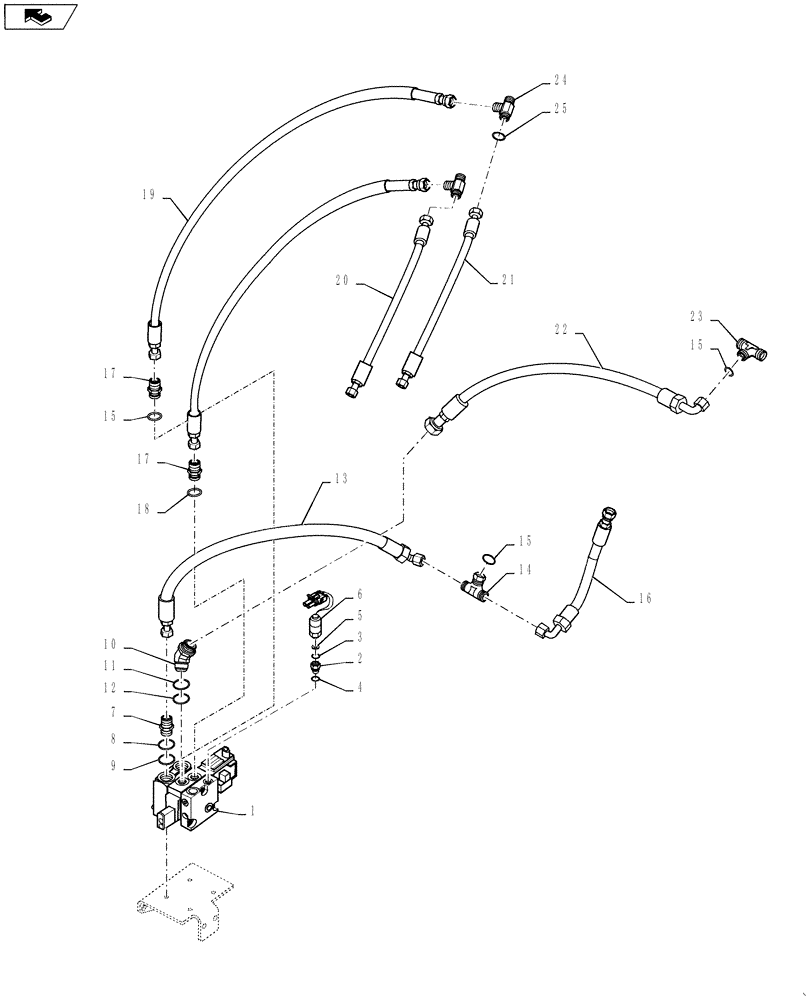

Схема запчастей Case 721F - (41.200.05[02]) - JOYSTICK STANDARD STEERING (41) - STEERING
3
home
15
25
14
22
1
6
16
13
8
19
18
4
7
12
24
11
15
21
5
20
23
2
17
15
10
17
9

Артикул

Название

Примечание

Количество

1

84238869

STEERING VALVE

Proportional, PVG32 100L/M

1шт.

2

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer, M14X1.5 M ORB M12X1.5 F ORB, Incl 3 - 4

1шт.

3

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12mm

1шт.

6

84175670

PRESSURE SWITCH

Pilot

1шт.

7

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 8 - 9

1шт.

8

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 11 - 12

1шт.

11

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Break Away Coupling

1шт.

13

84165276

HOSE ASSY.

Suction Valve

1шт.

14

701-439

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 15

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

16

84123546

HOSE ASSY.

Steering Supply

1шт.

17

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 15, 18

2шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

19

87739323

HOSE ASSY.

To Cylinder

2шт.

20

87492561

HOSE ASSY.

Steering Cylinder

1шт.

21

87492558

HOSE ASSY.

Right Side Rod

1шт.

22

84165268

HOSE ASSY.

To Tank

1шт.

23

84989850

3 WAY CONNECTION

Tee, Swivel ORFS 16MM, Incl 15

1шт.

24

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 25

2шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 25
