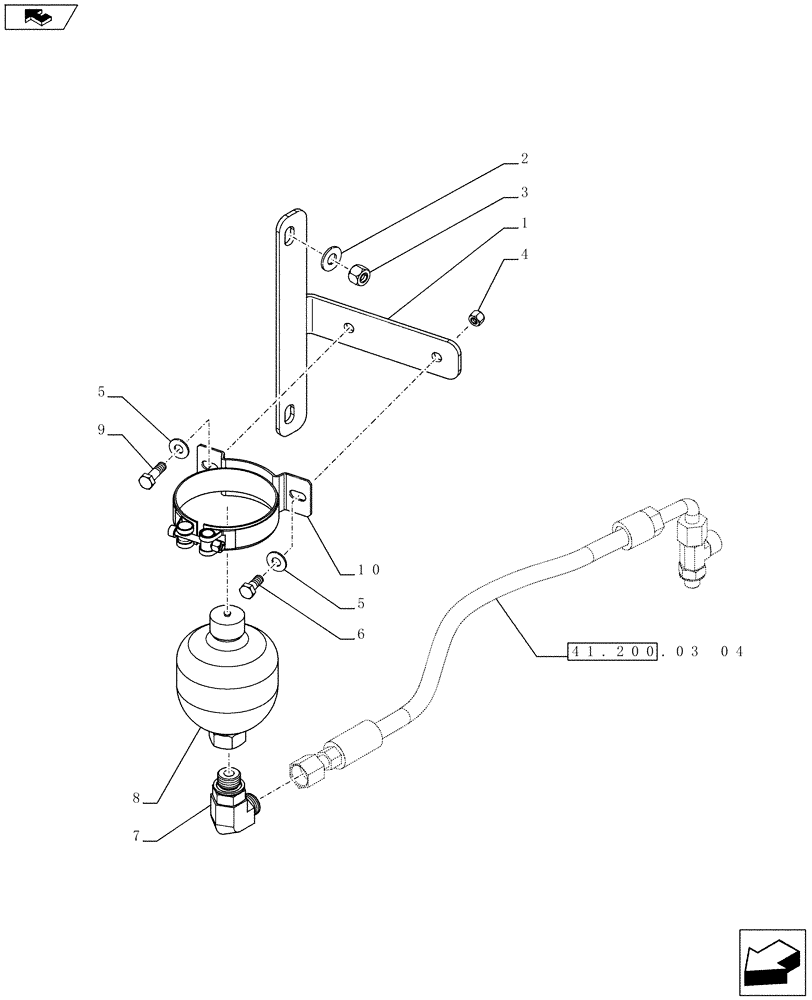

Запчасти Case 721F (41.200.03[05]) - STEERING AUXILIARY, ACCUMULATOR (41) - STEERING

1

87741113

BRACKET

Accumulator

1шт.

2

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

86528579

NUT,M8 x 1.25

2шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

1шт.

7

87725875

FITTING

90 Deg ADJ 12mm ORFS x 1/2

1шт.

8

87746283

ACCUMULATOR

1шт.

9

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

10

87750434

CLAMP

Assy For Accumulator

1шт.
