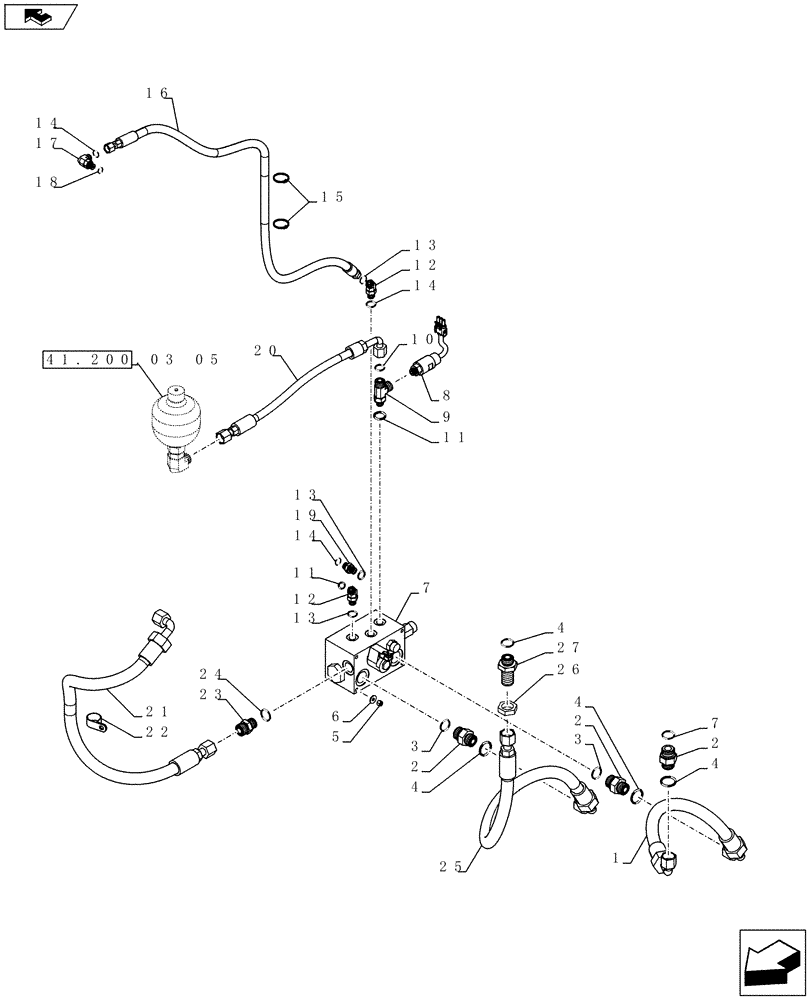

Запчасти Case 721F (41.200.03[04]) - STEERING AUXILIARY, MANIFOLD HOSES AND CONNECTORS (41) - STEERING

1

87569920

HOSE ASSY.

Pressure

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl. Ref. 3, 4

3шт.

3

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

87609806

MANIFOLD

Auxiliary Steering

1шт.

8

76083139

PRESSURE SWITCH

1шт.

9

87725860

FITTING

Incl. Ref. 10, 11

1шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Ref. 13, 14

2шт.

13

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

16

87519796

HOSE ASSY.

Steering Load Sense

1шт.

17

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Incl. Ref. 14, 18

1шт.

18

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

19

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Ref. 13, 14

1шт.

20

84243206

HOSE ASSY.

Accumulator

1шт.

21

87563047

HOSE

Filter Manifold

1шт.

22

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

23

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Incl. Ref. 24

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

87521824

HOSE ASSY.

Steering Pressure

1шт.

26

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

27

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. Ref. 4

1шт.
