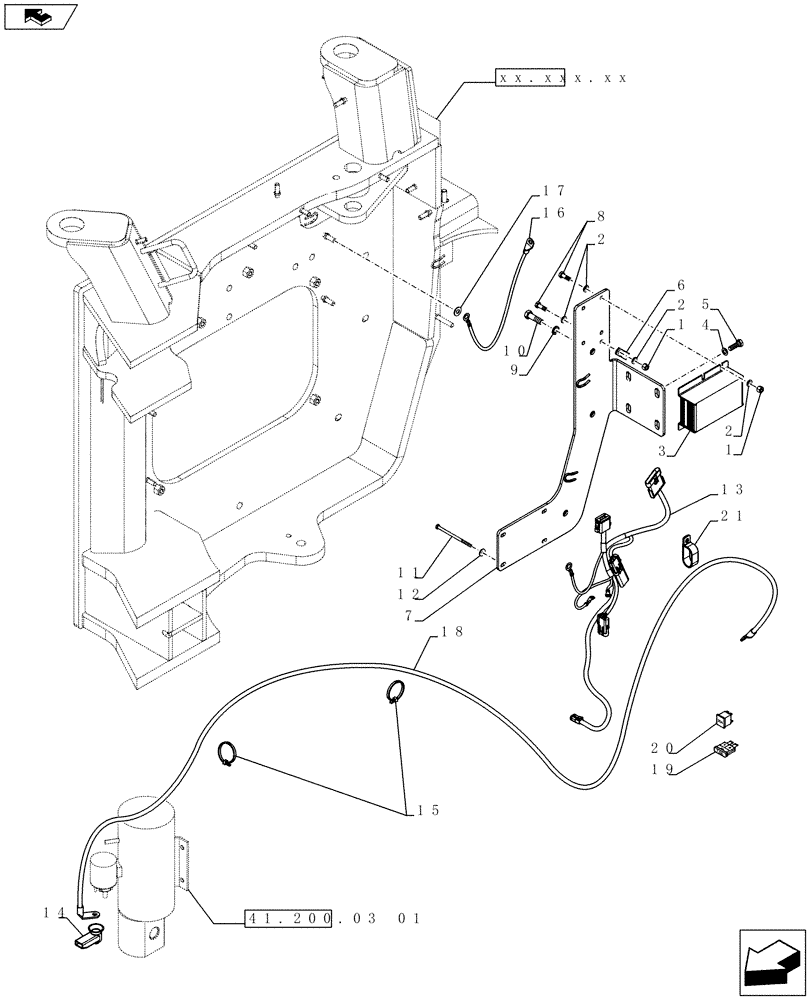

Запчасти Case 721F (41.200.03[02]) - STEERING AUXILIARY, ELECTRICAL (41) - STEERING

1

86528579

NUT,M8 x 1.25

15шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

3

8603171

MODULE

Secondary Steering

1шт.

4

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

6

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

87346069

BRACKET

Auxiliary Steering; Black

1шт.

8

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

9

86639312

WASHER,13.5mm ID x 20mm OD x 2mm Thk

3шт.

10

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

3шт.

11

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

12

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

13

84328472

HARNESS

Secondary Steering Module

1шт.

14

L126713

BOOT

Electrical

1шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

16

84391247

NEG BATTERY CABLE

Cable, Battery -NEG

1шт.

17

E134340

WASHER

Brass 10mm

2шт.

18

87358691

CABLE,3256mm L

Auxiliary Steering B+

1шт.

19

87522595

FUSE,7.5A, Mini, Brown

MINI 7.5 AMP

1шт.

20

87327335

FUSE,20 Amp

32V; 20AMP

1шт.

21

9603626

CLAMP

Double

1шт.
