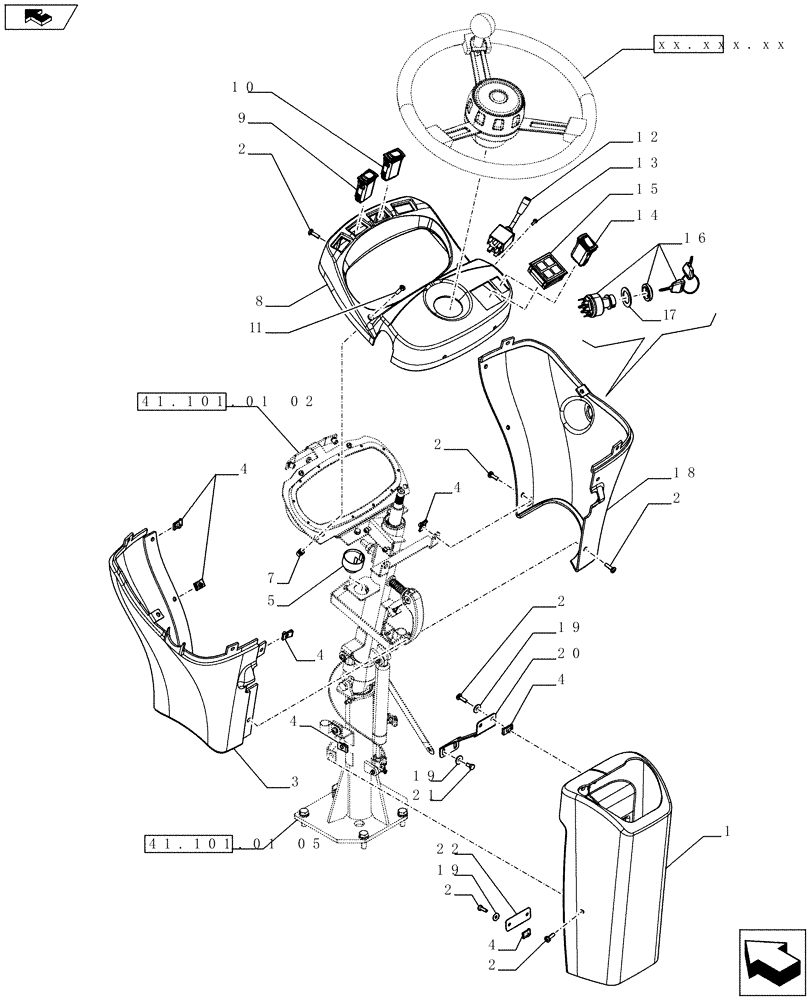

Запчасти Case 721F (41.101.01[04]) - CANOPY - STEERING COLUMN - COVERS, SWITCHES (41) - STEERING

1

87752863

COVER

Lower Steering

1шт.

2

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

15шт.

3

76303019

COVER

Left Steering

1шт.

4

87016585

NUT,Spring, M6 x 1

M6 Multi-Thread Short

11шт.

5

87517128

BUZZER

Incl. Ref. 6

1шт.

6

87517129

WIRE HARNESS

Buzzer; Not Illustrated

1шт.

7

404287A1

INSERT,M6

Threaded

2шт.

8

76303017

DASH PANEL

Dashboard Trim

1шт.

9

374434A2

SWITCH

Pilot Control

1шт.

10

374424A2

PARK BRAKE SWITCH

1шт.

11

84263391

SCREW

2шт.

12

389487A1

LIGHT SWITCH

1шт.

13

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

2шт.

14

374424A2

PARK BRAKE SWITCH

1шт.

15

87372804

BOX

Keypad C5.9

1шт.

16

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

17

76303478

BACK-UP RING

D.252x40; Nylon

1шт.

18

76303020

COVER

Right Steering Column

3шт.

19

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

20

87752864

BRACKET

Tie

1шт.

21

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

22

87752865

PLATE

Trim Cover Bottom

1шт.
