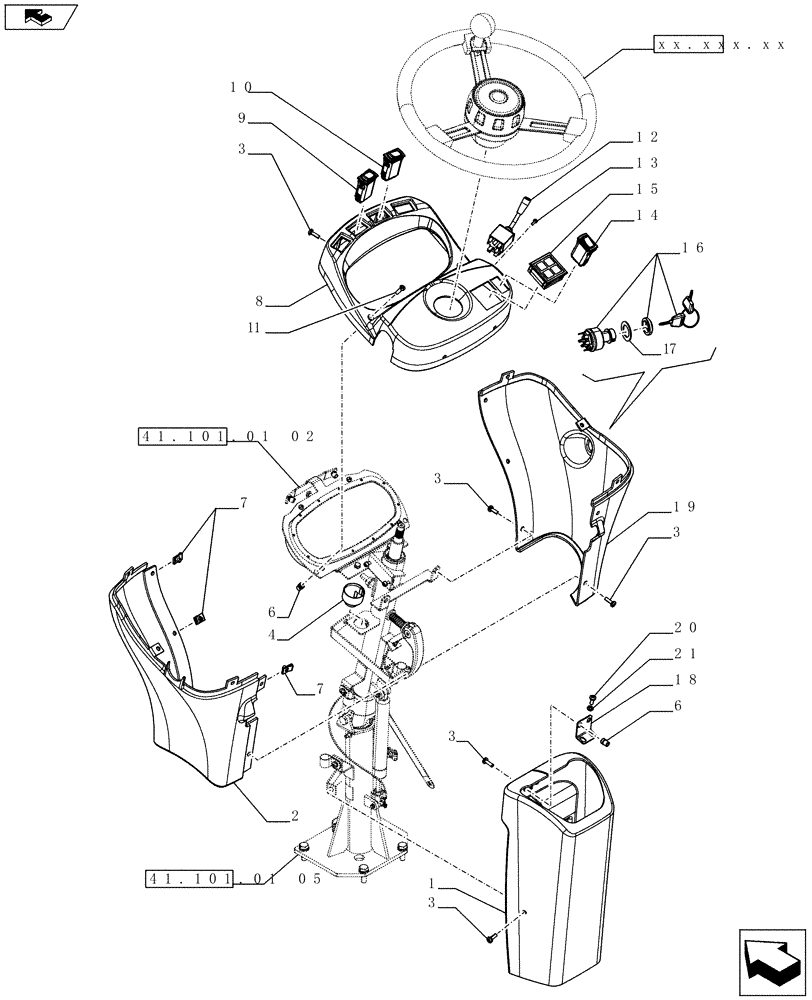

Запчасти Case 721F (41.101.01[03]) - CAB - STEERING COLUMN - COVERS, SWITCHES (41) - STEERING

1

76303021

COVER

Lower Steering Column

1шт.

2

76303019

COVER

Left Steering Column

1шт.

3

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

13шт.

4

87517128

BUZZER

Buzzer; Incl. Ref. 5

1шт.

5

87517129

WIRE HARNESS

Buzzer; Not Illustrated

1шт.

6

404287A1

INSERT,M6

Threaded

6шт.

7

87016585

NUT,Spring, M6 x 1

M6 Multi-Thread Short

3шт.

8

76303017

DASH PANEL

Dashboard Trim

1шт.

9

374434A2

SWITCH

Pilot Control

1шт.

10

374426A2

SWITCH

Hazard

1шт.

11

84263392

SCREW,Phillips Drive, Oval HD, M6 x 30mm, Cl 4.8

M6X30 OVAL-HD FULL C/R 4.8

2шт.

12

389487A1

LIGHT SWITCH

1шт.

13

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

2шт.

14

374424A2

PARK BRAKE SWITCH

1шт.

15

87372804

BOX

Keypad C5.9

1шт.

16

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

17

76303478

BACK-UP RING

D.252X40; Nylon

1шт.

18

76303516

BRACKET

Case

1шт.

19

76303020

COVER

Right Steering Column

1шт.

20

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

8шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
