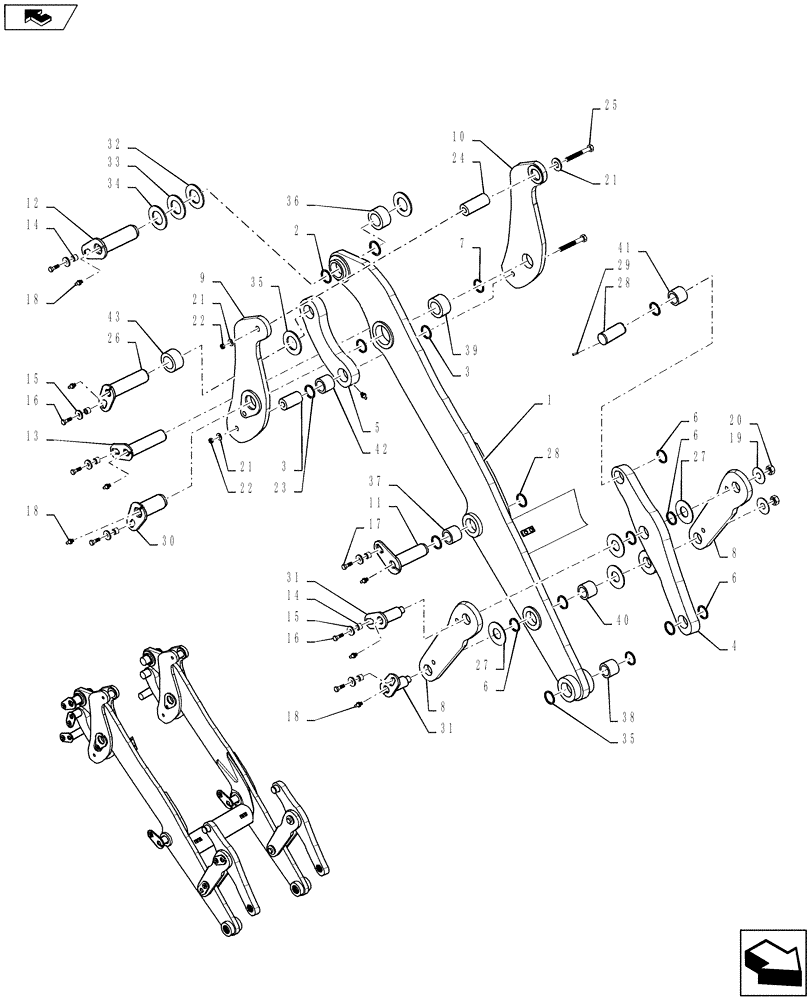

Запчасти Case 721F (39.100.07) - FRAME - LOADER LIFT AND LINKAGE ( XT ) (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

XT LOADER

1шт.

1

87342845

LIFT ARM

XT Loader; Incl. 36 - 40

1шт.

2

365523A1

WIPER SEAL

Rod; 82.5

4шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod; 69.8

8шт.

4

87433782

LINKAGE

Dump; Incl. 41

2шт.

5

87453639

LINKAGE

Anchor; Incl. 42 - 43

2шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod; 63.5

16шт.

7

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

Rod; 88.9

4шт.

8

87433778

LINKAGE

Guide

4шт.

9

87342853

LINKAGE

Bellcrank; RH

2шт.

10

87342849

LINK

Bellcrank; LH

2шт.

11

437168A1

PIN

Lift Arm; Case Power Tan

2шт.

12

87437072

HEADED PIN

Lift Arm; Case Power Tan

2шт.

13

443136A1

PIN,69.85mm OD x 290.5mm L

Lift Arm; Case Power Tan

2шт.

14

76086827

SPACER

Plated

14шт.

15

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

14шт.

16

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

17

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Dryseal PTF

18шт.

19

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

HDN

4шт.

20

131-53

NUT,1 1/2"-12

4шт.

21

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

22

9847024

NUT,M20, Cl 10

4шт.

23

8500311

PIN,69.85mm OD x 130.65mm L

Bellcranck; Anchor Side

2шт.

24

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

25

86624993

BOLT,Hex, M20 x 190mm, Cl 10.9

4шт.

26

435593A1

PIN

Lift Arm; Case Power Tan

2шт.

27

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

HDN

8шт.

28

87437183

PIN

Tilt Cylinder

2шт.

29

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

30

87437159

HEADED PIN

Bellcrank; CNH CE Gray

2шт.

31

87437223

HEADED PIN

Guide Link; CNH CE Gray

4шт.

32

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

83.9 ID; 3.5 THK

1шт.

33

76088814

WASHER,83.9mm ID x 155mm OD x 2.5mm Thk

83.9 ID; 2.5 THK

1шт.

34

76088813

WASHER,83.9mm ID x 155mm OD x 1.6mm Thk

83.9 ID; 1.6 THK

1шт.

35

D95148

WIPER SEAL

Rod; 76.2

8шт.

36

87613447

BUSHING

Lift Arm

2шт.

37

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Dump Link

2шт.

38

87613445

BUSHING,76.52mm ID x 89.99mm OD x 58mm L

Lift Arm

4шт.

39

87613446

BUSHING

Bellcrank Pivot

2шт.

40

87613428

BUSHING,63.8mm ID x 76.31mm OD x 48mm L

Anchor Link

2шт.

41

87613428

BUSHING,63.8mm ID x 76.31mm OD x 48mm L

Anchor Link

3шт.

42

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor Link

1шт.

43

87613431

BUSHING,76.55mm ID x 89.99mm OD x 45mm L

Lift Arm

1шт.
