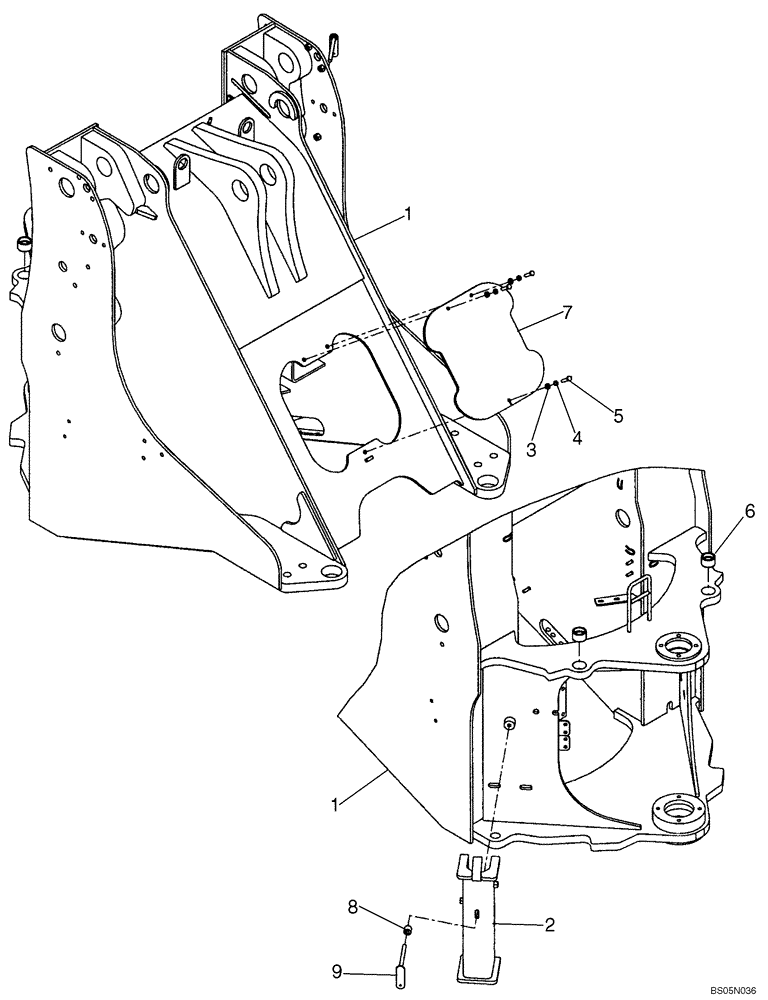

Запчасти Case 721F (39.100.01) - FRAME, FRONT- Z-BAR (39) - FRAMES AND BALLASTING

1

84261730

FRAME

Z-Bar Front Chassis

1шт.

2

87435589

CHANNEL

Linkage Support; Red

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

Steering

2шт.

7

8605898

COVER

Valve

1шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing

1шт.

9

8500875

HANDLE

With Linkage Channel

1шт.

10

47544936

FRAME

Not Illustrated, Incl 1 w/Decals, Euro

1шт.

10

47544938

FRAME

Not Illustrated, Incl 1 w/Decals, Spanish

1шт.

10

47544942

FRAME

Not Illustrated, Incl 1 w/Decals, French

1шт.

10

47544944

FRAME

Not Illustrated, Incl 1 w/Decals, North America

1шт.
