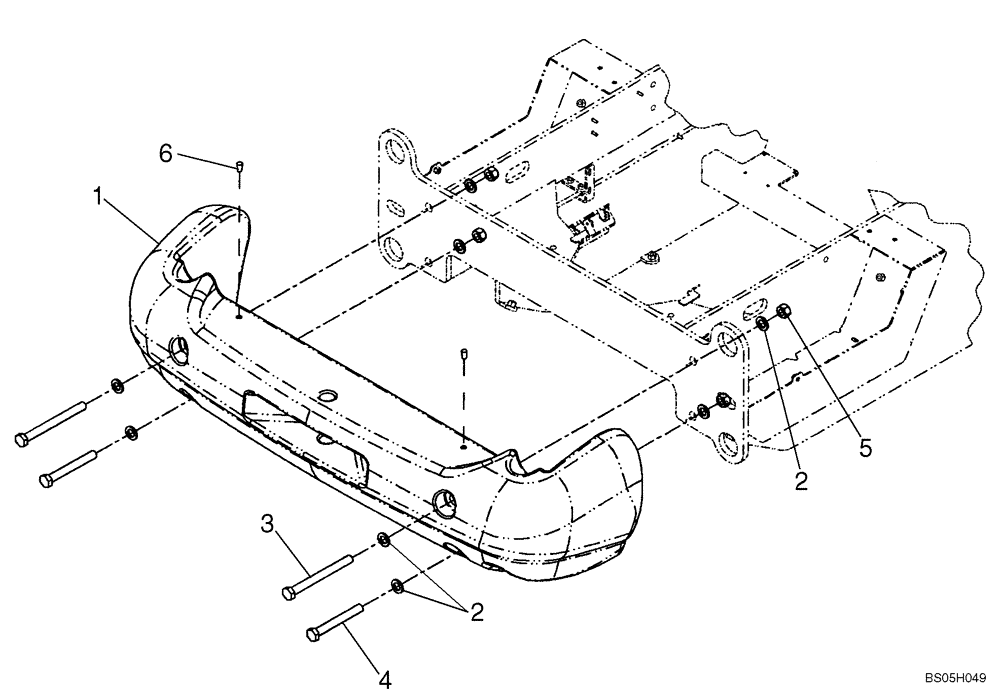

Запчасти Case 721F (37.140.02) - COUNTERWEIGHTS - 2753 POUNDS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

REF

INSTRUCTION

HEAVY DUTY

1шт.

435419A1

LINCH PIN,11.18mm OD

Not Illustrated

1шт.

87516266

PIN,44.45mm OD

Hitch; Not Illustrated

1шт.

1

84319654

COUNTERWEIGHT

2753 lb; Rear

1шт.

2

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

3

827-24250

BOLT,Hex, M24 x 3 x 250mm, Cl 10.9

2шт.

4

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

5

9848973

NUT,M24 x 3.0, Cl 10

4шт.

6

87308200

PLASTIC PLUG

2шт.
