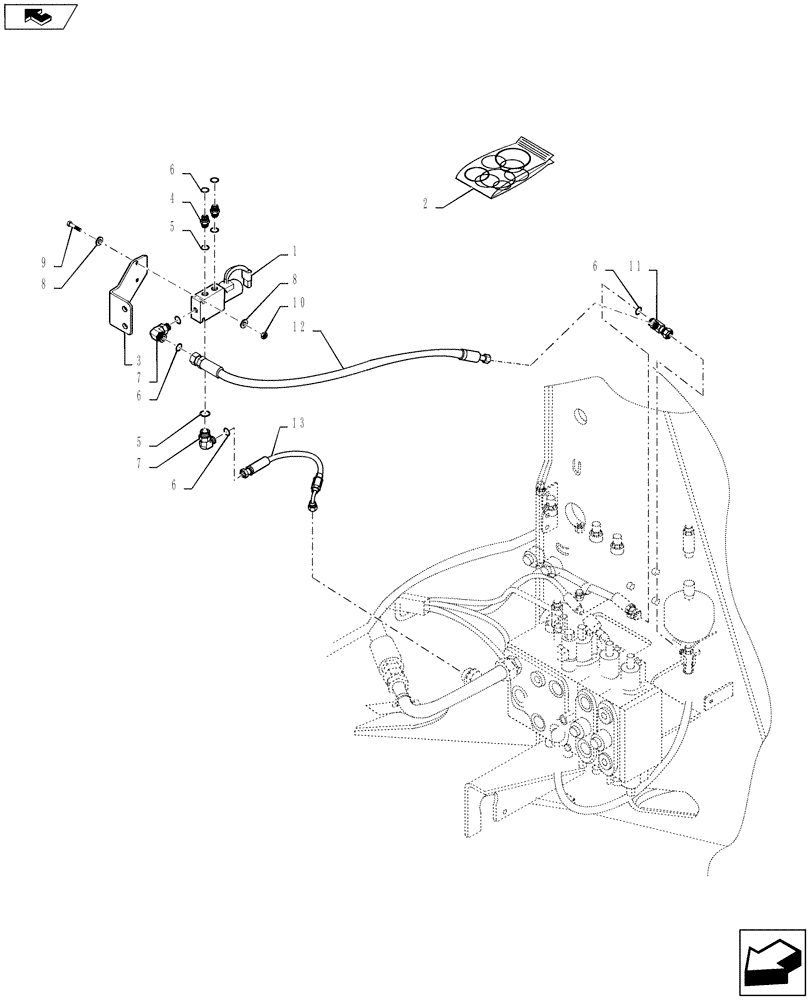

Запчасти Case 721F (35.936.04[01]) - HYDRAULICS - COUPLER LOCKING (35) - HYDRAULIC SYSTEMS

1

84162144

CARTRIDGE

1шт.

2

8605259

SEAL KIT

Includes (4) O-Rings and (6) Backup Rings, Which Are Not Serviced Separately

1шт.

3

442303A1

BRACKET

1шт.

4

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl. 5-6

2шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl. 5-6

2шт.

8

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

86556136

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Tee 11/16" ORFS x 11/16"-16 Fem Sw Run; Incl. 6

1шт.

12

8500756

FLEXIBLE HOSE

325 mm (12-13/16 in); Pressure

1шт.

13

8500757

FLEXIBLE HOSE

400 mm (15-3/4 in); Coupler

1шт.
