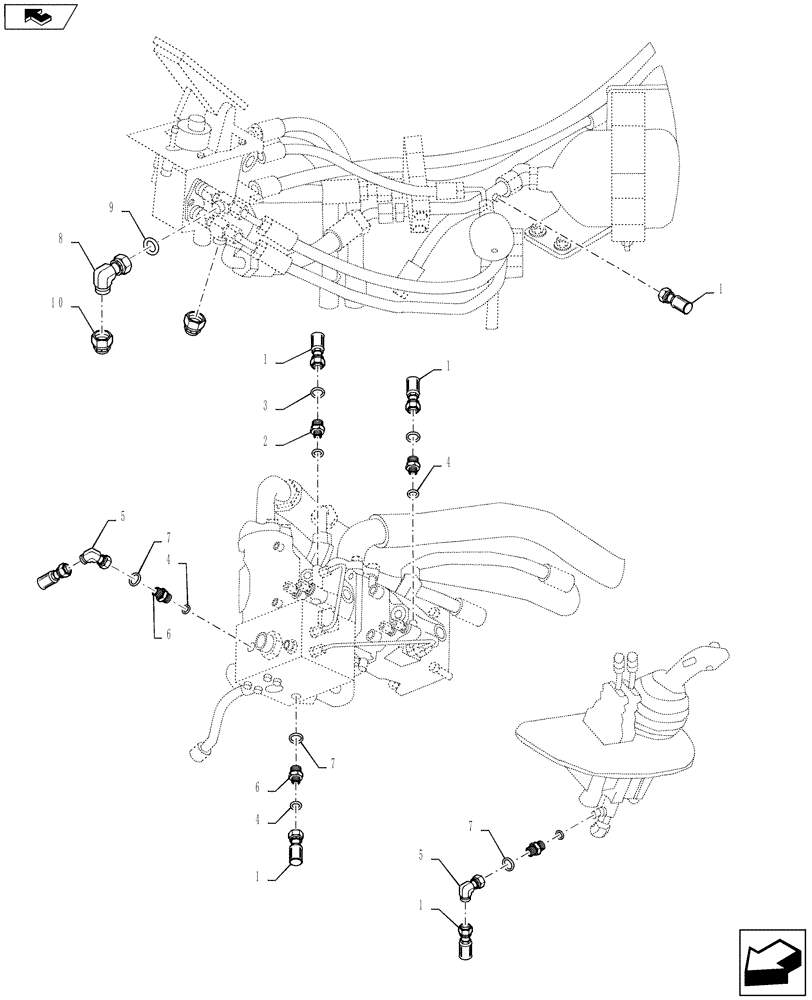

Запчасти Case 721F (35.936.03) - HYDRAULICS - COUPLER SYSTEM - DIAGNOSTIC LINES (35) - HYDRAULIC SYSTEMS

1

190117A1

COUPLING

Diagnostic

6шт.

2

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl 3 - 4

2шт.

3

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

6шт.

5

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 4

2шт.

6

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 7

2шт.

7

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

2шт.

8

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 9

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10

190316A1

COUPLING

Diagnostic, If Used

2шт.
