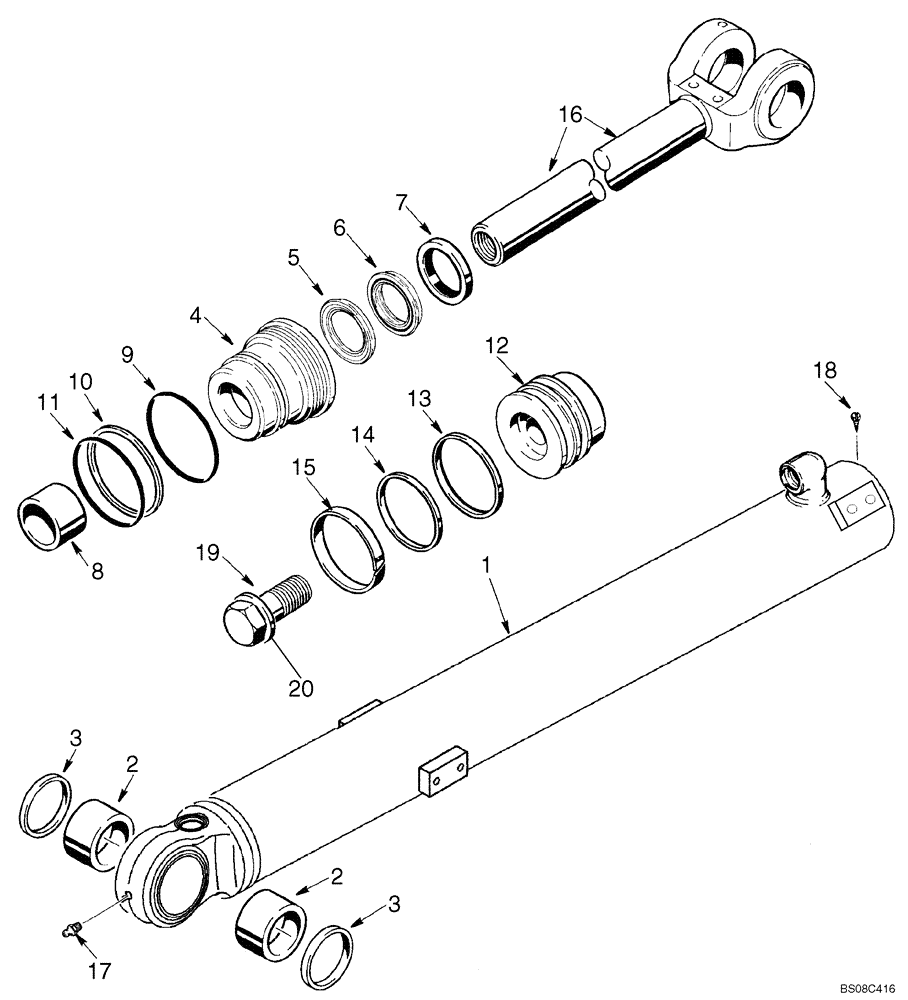

Запчасти Case 721F (35.901.04[02]) - CYLINDER ASSY - LOADER LIFT (XT LOADER) (35) - HYDRAULIC SYSTEMS

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

XT Loader, 1114mm ID x 856.5mm Stroke; Incl. Refs. 1 - 20

1шт.

87319194R

REMAN-HYD CYLINDER

721F TIER 4

1шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

8605262

SEAL KIT

XT Bucket Cylinder; Incl. Refs. 5 - 11, 13 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Must Order Complete Assembly

1шт.

2

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

Replaces 363583A1

2шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

87437495

GLAND

Cylinder; Order Components; Incl. Refs. 4 - 11

1шт.

4

446455A1

GLAND

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Incl. Refs. 5, 6; Not Serviced Separately, Order Seal Kit 87440117

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD; Order Seal Kit 87440117

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, BUFFER; Order Seal Kit 87440117

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

8

336039A1

BUSHING

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

11

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

G110251

PISTON ASSY.

Cylinder; Order Components; Incl. Refs. 12 - 15

1шт.

12

G110252

PISTON

1шт.

13

446481A1

SEAL,117.2mm ID x 122.15mm OD x 6.96mm Thk

Rectangular Piston

1шт.

14

87403649

SEALING RING,Square, 5.28mm Thk x 107.06mm ID

SEALRING Ring, Loader

1шт.

15

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

Wear Ring

1шт.

16

87324796

PISTON ROD

57.2mm dia

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER

1шт.
