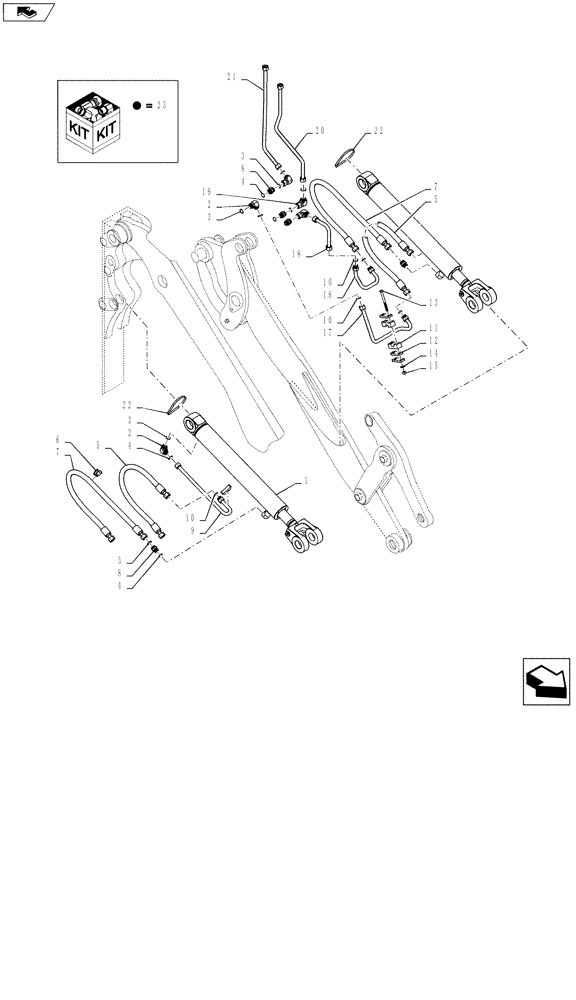

Запчасти Case 721F (35.901.04[01]) - LIFT CYLINDER INSTALLATION - XT (35) - HYDRAULIC SYSTEMS

1

87318066

LIFT CYLINDER

Includes Ref. 23

2шт.

87319194R

REMAN-HYD CYLINDER

721F TIER 4, Reman For New P/N 87318066

2шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

2

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

2шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

5шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

5

87439689

FLEXIBLE HOSE,25.4mm ID x 1223mm L, SAE 100R12

1шт.

6

8500550

BLOCK

Clamp

1шт.

7

87439688

FLEXIBLE HOSE,25.4mm ID x 1655mm L, SAE 100R12

Lift Rod

1шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

9

8500547

HYD TUBE

Lift Cylinder

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

7шт.

11

367489A1

BLOCK

Tube Mounting

2шт.

12

367658A1

PLATE

Clamp Cover

6шт.

13

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

87444556

HYD TUBE,25 mm OD

Left Lower, Outer

1шт.

17

87439731

HYD TUBE

Left Lower, Formed

1шт.

18

87444554

HYD TUBE,25 mm OD x 204, 155 mm L

Left Lower, Inner

1шт.

19

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

3шт.

20

87439871

HYD TUBE,25 mm OD x 888, 164 mm L

Left Tilt Rod

1шт.

21

87439873

HYD TUBE,25 mm OD x 775, 275 mm L

Left Tilt Base

1шт.

22

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

23

8605262

SEAL KIT

Cylinder (Not Shown)

2шт.
