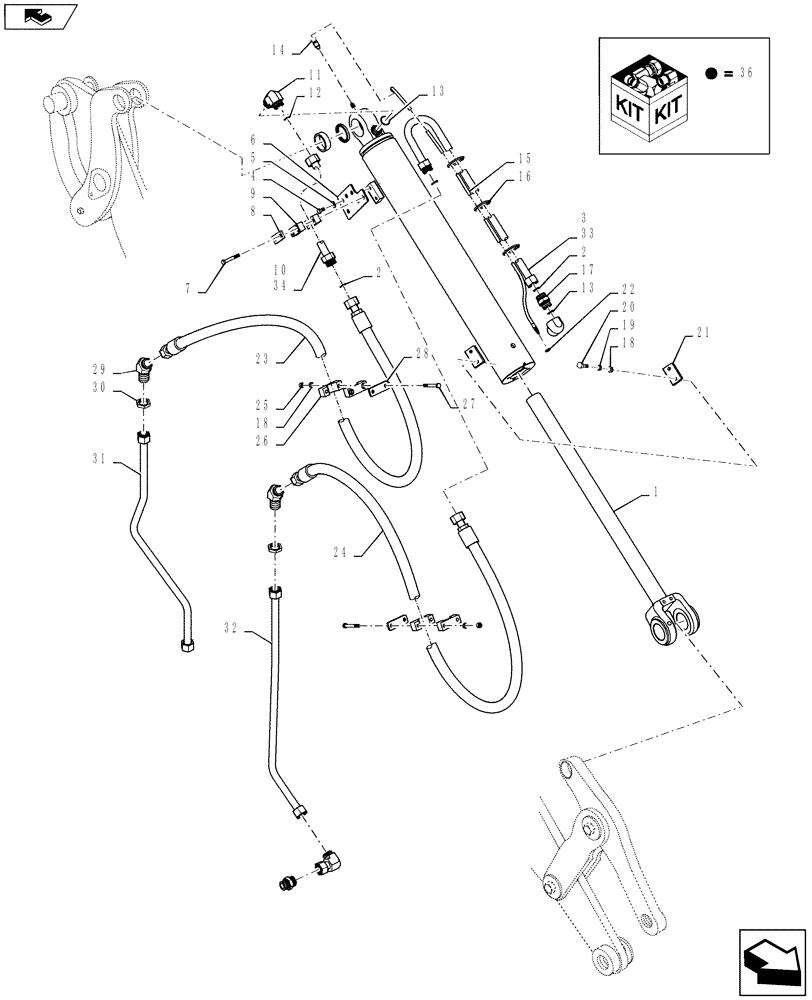

Запчасти Case 721F (35.901.03[01]) - TILT CYLINDER INSTALLATION - XT (35) - HYDRAULIC SYSTEMS

1

87324809

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke

Tilt; Includes Ref. 36

2шт.

87324809R

REMAN-HYD CYLINDER

721F TIER 4

2шт.

87324809C

CORE-HYD CYLINDER

Return Number

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

3

87444574

HYD TUBE,25 mm OD x 724, 117 mm L

Tilt Rod Right

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

87444684

BRACKET

Tilt Tubes Right

1шт.

7

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

8

367658A1

PLATE

Clamp Cover

2шт.

9

367489A1

BLOCK

Tube Mounting

2шт.

10

87444578

HYD TUBE,25 mm OD x 266, 124 mm L

Tilt Base Right

1шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

12

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

6шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

14

328082A1

ELBOW

90 Dgr Long Street

1шт.

15

87444057

FLEXIBLE HOSE

Grease

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

17

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

5шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

87441374

BRACKET

Grease Hose

1шт.

22

F53473

LOCK NUT,1/8-27 NPSM

Hex

1шт.

23

87436780

FLEXIBLE HOSE,25.4mm ID x 2293mm L, SAE 100R12

Tilt Base

1шт.

24

87436779

FLEXIBLE HOSE,25.4mm ID x 2333mm L, SAE 100R12

Tilt Rod

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

26

87444561

BLOCK

Tube Mounting

2шт.

27

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

28

8500858

PLATE

Clamp Cover

2шт.

29

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

30

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

31

87439869

HYD TUBE,25 mm OD x 817, 275 mm L

Tilt Base Right

1шт.

32

87439867

HYD TUBE,25 mm OD x 909, 234 mm L

Tilt Rod Right

1шт.

33

87444576

HYD TUBE,25 mm OD x 724, 117 mm L

Tilt Rod Left

1шт.

34

87444580

HYD TUBE,25 mm OD x 266, 123 mm L

Tilt Base Left

1шт.

35

87444686

BRACKET

Tilt Tubes Left

1шт.

36

87440117

SEAL KIT

Cylinder

2шт.
