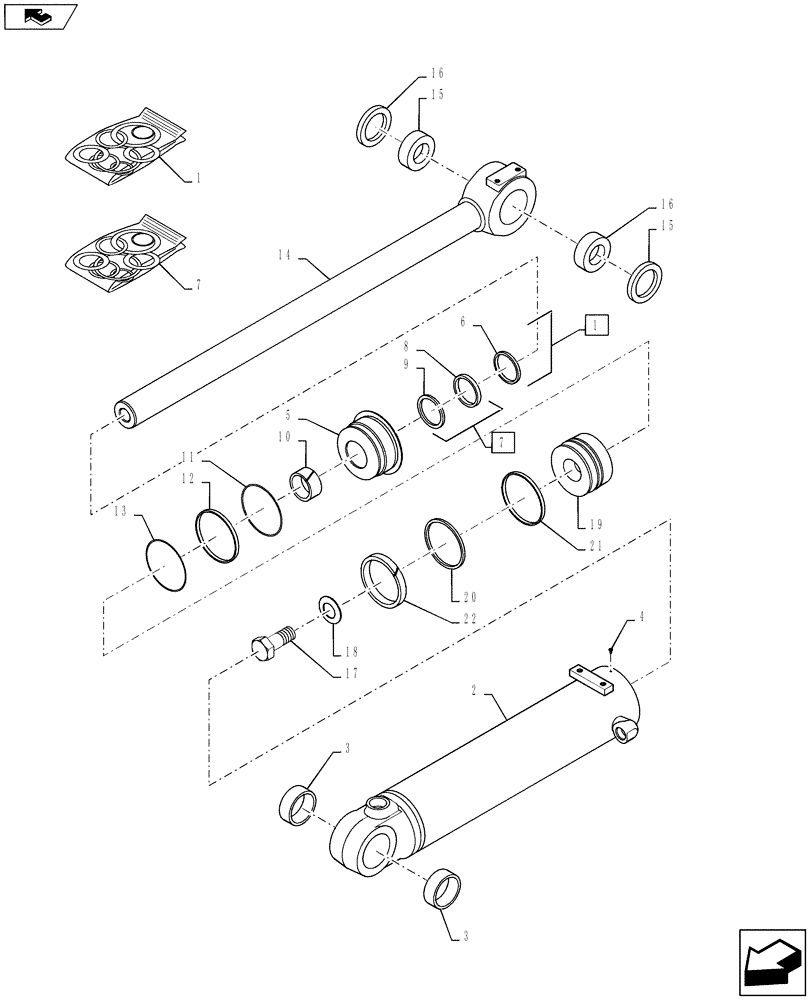

Запчасти Case 721F (35.901.02[03]) - CYLINDER ASSY - LOADER BUCKET (XR LOADER) (35) - HYDRAULIC SYSTEMS

87691131

CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

HYDRAULIC, 146 ID x 629 mm strk; XR Loader Bucket Tilt, Incl. Refs. 2 - 22

1шт.

87691131R

REMAN-HYD CYLINDER

721F TIER 4

1шт.

87691131C

CORE-HYD CYLINDER

Return Number

1шт.

1

87495411

SEAL KIT

XR Bucket Cylinder; Incl. Refs. 6 - 13, 21, 22, And 447764A1 Piston Seal For Service Replacement

1шт.

2

87432278

BARREL

Incl. Ref. 3

1шт.

3

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

82.6 Dia.

2шт.

4

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

446335A1

GLAND

Assembly; Incl. Refs. 5 - 13

1шт.

5

446336A1

GLAND

Packing

1шт.

6

D95148

WIPER SEAL

1шт.

7

1542881C1

SEAL KIT

Rod And Buffer; Incl. Refs. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

10

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

11

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

12

446179A1

SEALING RING,135.99mm ID x 141.93mm OD x 1.4mm Thk

Backup

1шт.

13

238-5253

O-RING,0.139" Thk x 5.359" ID, -253, Cl 5, 75 Duro

1шт.

14

87691129

ROD

76.2 Dia; Incl. Ref. 15

1шт.

15

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

82.6 Dia.

2шт.

16

365523A1

WIPER SEAL

Wiper

4шт.

17

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER

1шт.

87432305

PISTON

Incl. Refs. 19 - 22

1шт.

19

87432306

PISTON ROD/GLAND

146.0 Dia Cylinder; 76.2 Dia Rod

1шт.

20

446339A1

SEAL,140.03mm ID x 147.81mm OD x 9.32mm Thk

127.0 Dia.

1шт.

21

446340A1

SEALING RING,Square, 6.86mm Thk x 126.11mm ID

127.0 Dia.

1шт.

22

446196A1

SEALING RING,Split, 139.7mm ID x 146.05mm OD x 19.05mm Thk

Wear

1шт.
