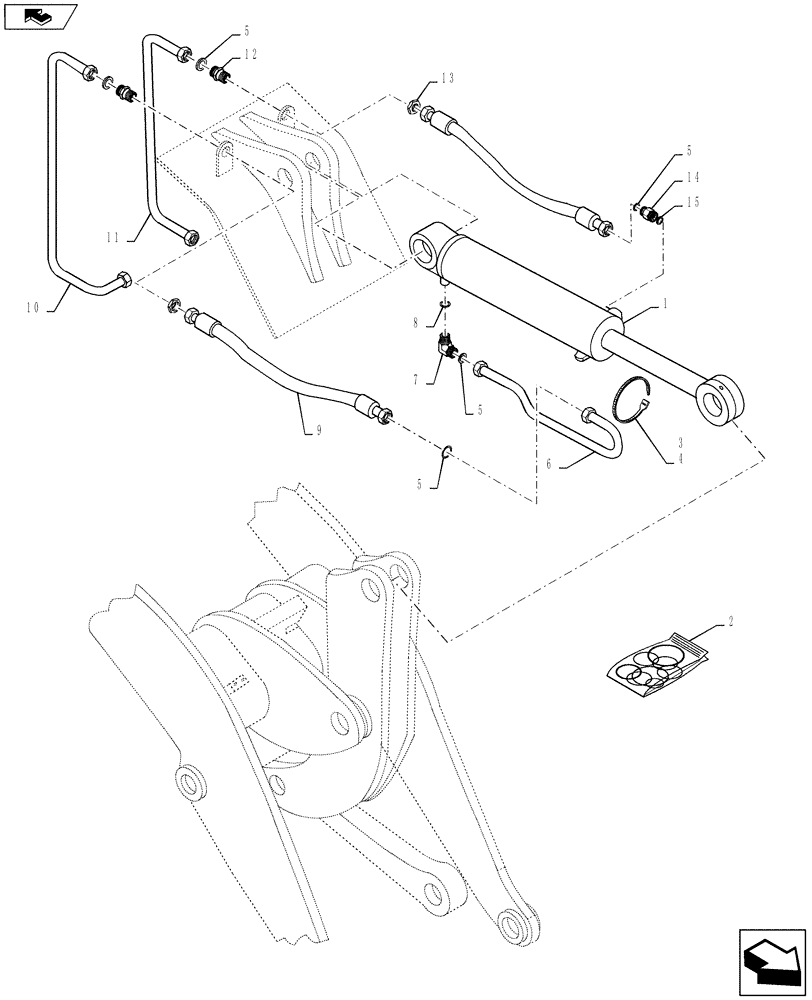

Запчасти Case 721F (35.901.02[01]) - TILT CYLINDER INSTALLATION - Z-BAR, XR (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

TILT CYLINDER INSTALLATION

1шт.

1

87318786

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt; 76.2, 146.05; Z-BAR

1шт.

87318786R

REMAN-HYD CYLINDER

721F Tier 4

1шт.

87318786C

CORE-HYD CYLINDER

Return Number

1шт.

1

87691131

CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt; 76.2, 146.05; XR

1шт.

87691131R

REMAN-HYD CYLINDER

721F TIER 4

1шт.

87691131C

CORE-HYD CYLINDER

Return Number

1шт.

2

87495411

SEAL KIT

For Tilt Cylinders 87318786, and 87691131

1шт.

3

391133A1

CLAMP

Hose

1шт.

4

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

1шт.

5

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

5шт.

6

8602125

HYD TUBE

Tilt Cylinder

1шт.

7

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

8

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9

8602615

FLEXIBLE HOSE,31.75mm ID x 988mm L, SAE 100R11

Tilt

2шт.

10

8602611

HYD TUBE

Rollback

1шт.

11

8602613

HYD TUBE

Dump

1шт.

12

701-174

UNION,1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

2шт.

13

701-922

BHD LOCK NUT,1-11/16" - 12

2шт.

14

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
