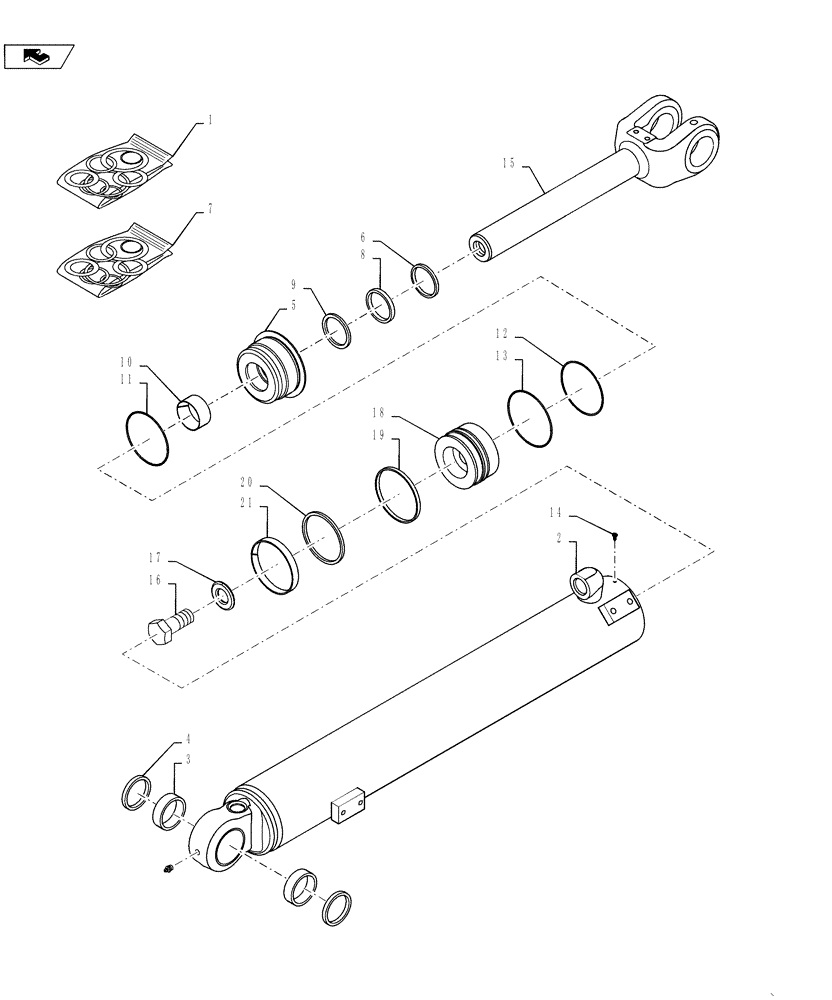

Запчасти Case 721F (35.901.01[02]) - CYLINDER ASSY - LOADER LIFT (35) - HYDRAULIC SYSTEMS

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

120.6 ID x 76.2; Incl. Refs. 1 - 22

1шт.

87319194R

REMAN-HYD CYLINDER

721F TIER 4

1шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

1

8605262

SEAL KIT

Lift Cylinder; Incl. Refs. 7 - 14, 21, 22, Also Incl. 447763A1 Expandable Seal For Service Replacement Of Ref 17 Seal

1шт.

2

446471A1

TUBE,120.53mm Bore Dia

Tube; Incl. 4

1шт.

3

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

4

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

2шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Order Components; Incl. Refs. 6 - 14

1шт.

5

446455A1

GLAND

1шт.

6

D95148

WIPER SEAL

1шт.

7

1542881C1

SEAL KIT

Incl. Refs. 9, 10

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

10

336042A1

BUSHING

1шт.

11

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

12

84153643

SEAL,112.52mm ID x 119.68mm OD x 4.85mm Thk

1шт.

13

238-5245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

14

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

15

87318069

PISTON ROD

76,2 mm dia

1шт.

16

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 18

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER

1шт.

446479A1

PISTON

Incl. Refs. 19 - 21

1шт.

18

446480A1

PISTON

1шт.

19

446481A1

SEAL,117.2mm ID x 122.15mm OD x 6.96mm Thk

1шт.

20

87403649

SEALING RING,Square, 5.28mm Thk x 107.06mm ID

Loader Ring

1шт.

21

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

Wear

1шт.
