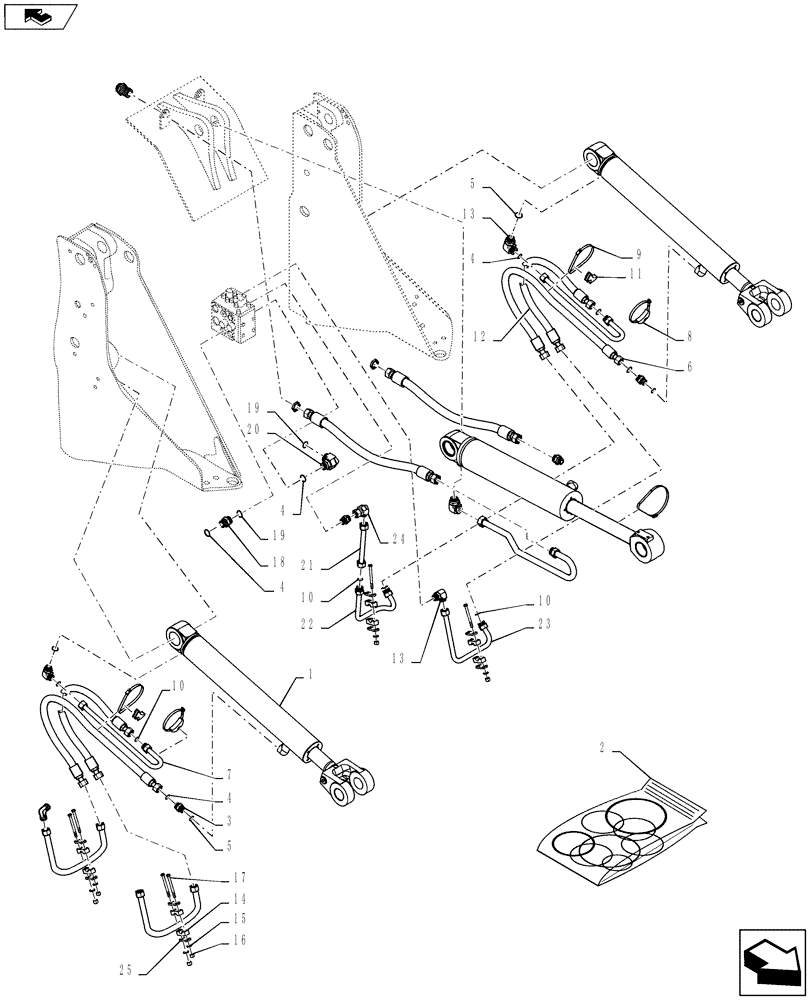

Запчасти Case 721F (35.901.01[01]) - LIFT CYLINDER INSTALLATION - Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

2шт.

87319194R

REMAN-HYD CYLINDER

721F TIER 4

2шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

2

8605262

SEAL KIT

For Lift Cylinder 87319194

2шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. Ref. 4, 5

3шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

7шт.

5

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

8шт.

6

87659631

HYDRAULIC HOSE,25.4mm ID x 1525mm L, SAE 100R12

Lift Rod

2шт.

7

8500547

HYD TUBE

Lift Cylinder

2шт.

8

391133A1

CLAMP

Hose

2шт.

9

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

11

8500550

BLOCK

Clamp

2шт.

12

87659635

HYDRAULIC HOSE,25.4mm ID x 1103mm L, SAE 100R12

Lift Base

2шт.

13

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. Ref. 4, 5

3шт.

14

367489A1

BLOCK

Tube Mounting

4шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

17

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

8шт.

18

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. Ref. 4, 19

1шт.

19

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

20

700-335

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. Ref. 4, 19

1шт.

21

8501057

HYD TUBE

LHS Lower Straight

1шт.

22

8501055

HYD TUBE

LHS Lower Formed

1шт.

23

8500519

HYD TUBE

LHS Raise

1шт.

24

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. Ref. 4

1шт.

25

367658A1

PLATE

Clamp Cover

4шт.
