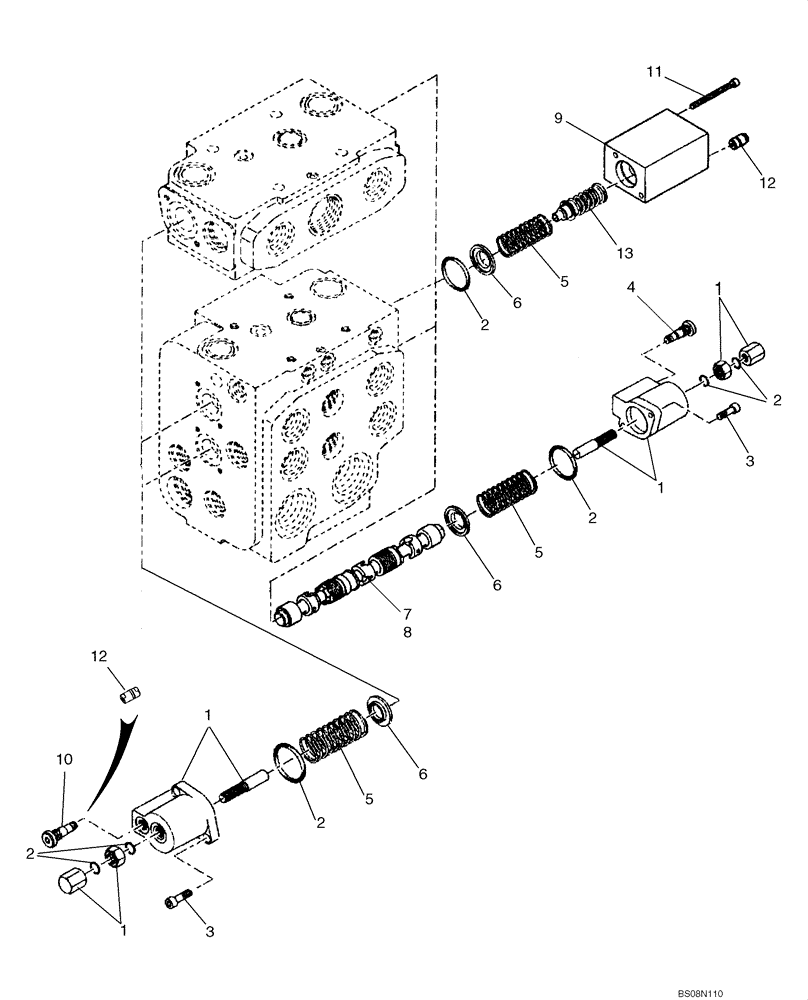

Запчасти Case 721F (35.724.04[02]) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (3 SPOOL VALVE) (Z-BAR) (35) - HYDRAULIC SYSTEMS

87539263

HYDRAULIC VALVE

Incl. 1 - 13; Includes Housing Assembly On Fig. 35.724.04 (01)

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

5шт.

2

8602927

SEAL KIT

Load Sensing Control Block

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

4

8602924

CARTRIDGE

M12 x 1,5

5шт.

5

8602917

SPRING

6шт.

6

8602918

RETAINER

Spring

6шт.

7

87311763

SPOOL

Bucket and Optional Spools

2шт.

8

8602895

SPOOL

Boom Spool; Used With Ref 9

1шт.

9

87311762

COVER

Component Parts Not Serviced Separately

1шт.

10

87311766

PLUG

2шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

12

8604578

CHECK VALVE

1-2шт.

13

87311768

SPRING

Compression for Float

1шт.
