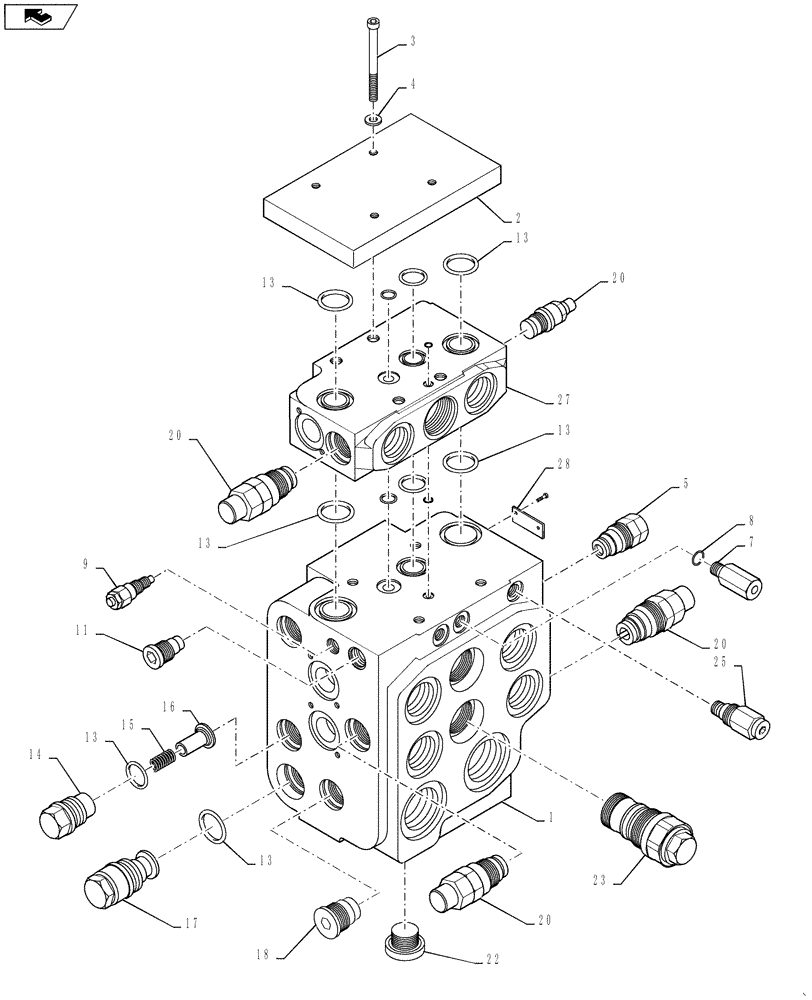

Запчасти Case 721F (35.724.04[01]) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (Z-BAR) (35) - HYDRAULIC SYSTEMS

1

87539263

HYDRAULIC VALVE

Three Spool; Incl. 1 - 28; Includes Spool Assembly On Fig. 35.724.04 (02)

1шт.

2

8602896

COVER

1шт.

3

8602928

HEX SOC SCREW,M10 x 110mm, Cl 10.9

Hex Socket; M10 x 110; 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

8602904

PILOT VALVE

Anti-Cavitation; Inc 6 Component Parts Not Serviced Separately

1шт.

6

8604938

SEAL KIT

1шт.

7

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15,60 x 1,78

1шт.

9

8602925

VALVE PRESSURE RELIE

Pressure Relief Valve, Inc. 10, Component Parts Not Serviced Separately

1шт.

10

8602926

SEAL KIT

Pressure Relief valve

1шт.

11

8602915

HYDRAULIC VALVE

Flow Limiting; Inc.12 Component Parts Not Serviced Separately

1шт.

12

8602916

SEAL KIT

Flow Limiting Valve

1шт.

13

8602927

SEAL KIT

Load Sensing Control Block

1шт.

14

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

2шт.

15

8602921

SPRING

Compression

2шт.

16

8602920

CONE

2шт.

17

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

18

8602902

LOCK SCREW

Inc. 19, Component Parts Not Serviced Separately

1шт.

19

8602903

SEAL KIT

LocK Screw

1шт.

20

8602906

HYDRAULIC VALVE

Combined Relief and AntiCavitation; Inc.21, Component Parts Not Serviced Separate

4шт.

21

8602907

SEAL KIT

Relief and Anti-Cavitation

1шт.

22

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

2шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation; Inc. 24, Component Parts Not Serviced Separately

3шт.

24

8602901

SEAL KIT

Pilot Relief and Anti-Cavitation

1шт.

25

8602913

HYDRAULIC VALVE

Flow Limiting; Inc. 26, Component Parts Not Serviced Separately

1шт.

26

8602914

SEAL KIT

Flow Limiting

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK, M6, Spool

1шт.

28

NSS

NOT SOLD SEPARAT

Type Plate

1шт.
