(35.724.03[02]) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (XT)

Запчасти Case 721F (35.724.03[02]) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (XT) (35) - HYDRAULIC SYSTEMS

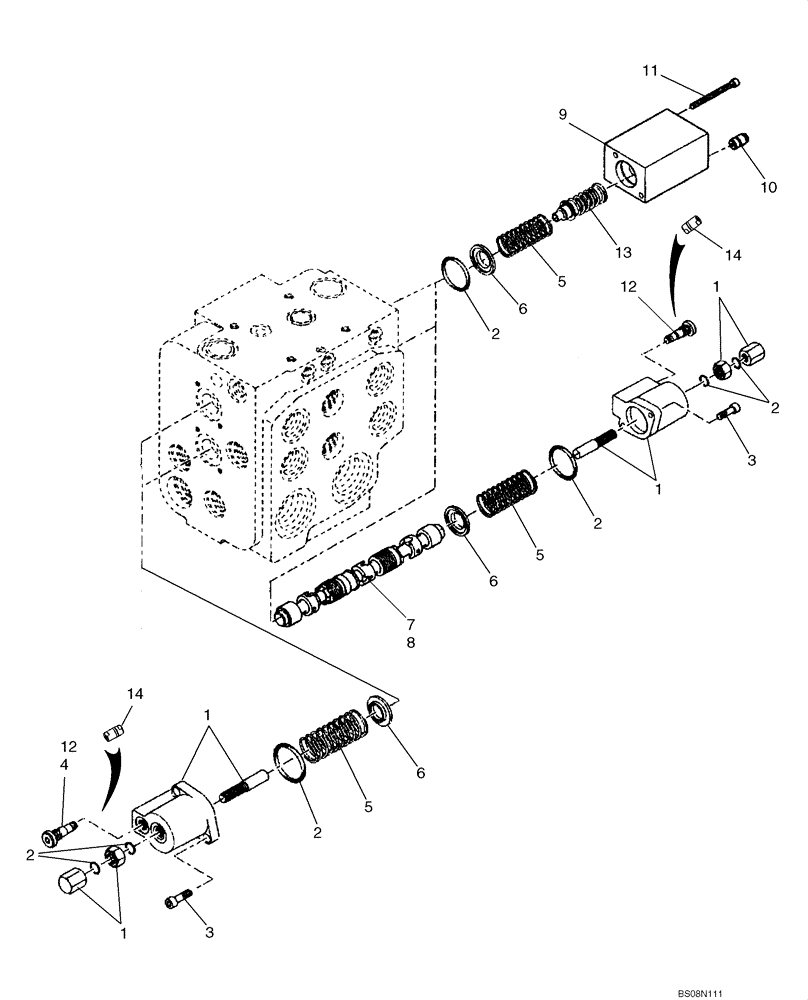

Схема запчастей Case 721F - (35.724.03[02]) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (XT) (35) - HYDRAULIC SYSTEMS
12
3
2
5
1
1
1
6
14
4
7
5
2
2
10
12
6
1
5
3
13
2
14
9
8
6
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8602890

COVER

Component Parts Not Serviced Separately

3шт.

2

8602927

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

4

8602924

CARTRIDGE

M12 x 1,5

3шт.

5

8602917

SPRING

4шт.

6

8602918

RETAINER

Spring

5шт.

7

87311900

SPOOL

Bucket; Lower Spool

1шт.

8

8602895

SPOOL

Boom; Upper Spool

1шт.

9

87311762

COVER

Component Parts Not Serviced Separately

1шт.

10

8604578

CHECK VALVE

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

12

87311766

PLUG

2шт.

13

87311768

SPRING

Compression for Float

1шт.

14

8604578

CHECK VALVE

Throttle Check

1шт.
