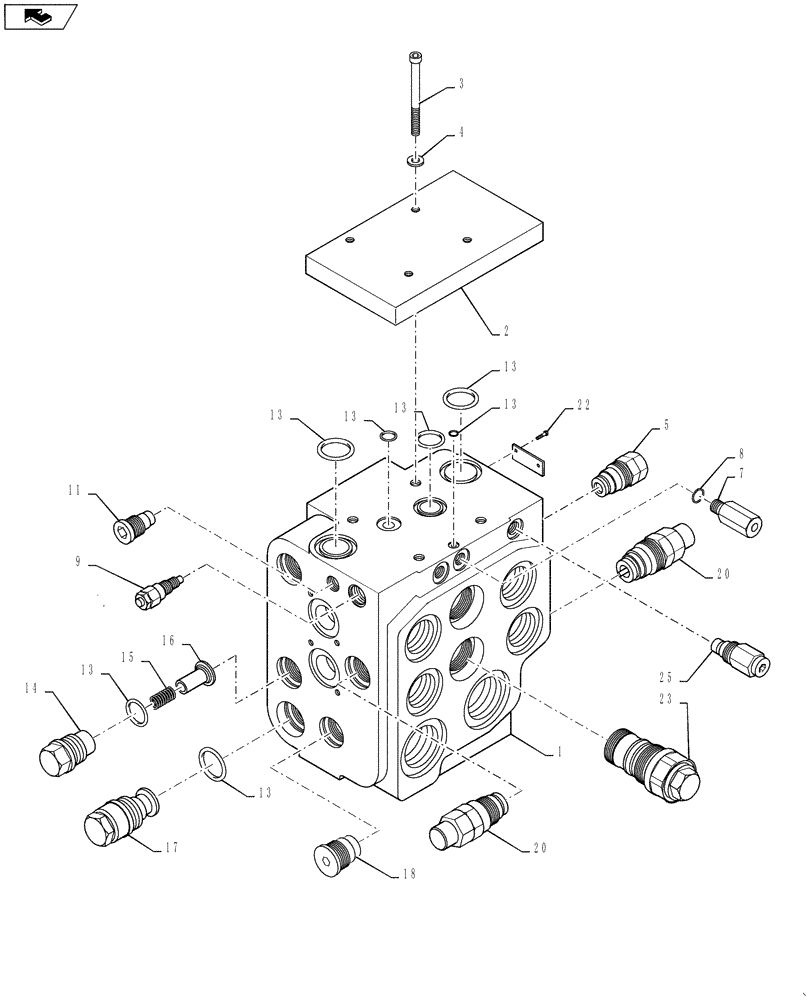

Запчасти Case 721F (35.724.03[01]) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (XT) (35) - HYDRAULIC SYSTEMS

1

87592834

HYDRAULIC VALVE

Two Spool; Incl. 1 - 25; Includes Spool Assembly On Figure 35.724.03 (02) If Used

1шт.

2

87613466

PLATE

PLATE, CAP

1шт.

3

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

M10 x 35; 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

6

87613467

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

6

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

7

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15,60 x 1,78

1шт.

9

8602925

VALVE PRESSURE RELIE

Inc.10

1шт.

10

8602926

SEAL KIT

Pressure Relief Valve

1шт.

11

87613469

HYDRAULIC VALVE

Flow Limiting Valve, Inc. 12

1шт.

12

8602916

SEAL KIT

Flow Limiting Valve

1шт.

13

8602927

SEAL KIT

1шт.

14

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

1шт.

15

8602921

SPRING

Compression

1шт.

16

8602920

CONE

1шт.

17

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

18

8602902

LOCK SCREW

Inc. 19

1шт.

19

8602903

SEAL KIT

Lock Screw

1шт.

20

8602906

HYDRAULIC VALVE

Relief and Anti-Cavitation, Inc. 21

2шт.

21

8602907

SEAL KIT

Relief and Anti-Cavitation

1шт.

22

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

1шт.

23

8602900

PILOT VALVE

Inc. 24

2шт.

24

8602901

SEAL KIT

Pilot Relief and Anti-Cavitation

1шт.

25

8602913

HYDRAULIC VALVE

Inc. 26

1шт.

26

8602914

SEAL KIT

Flow Limiting Valve

1шт.
