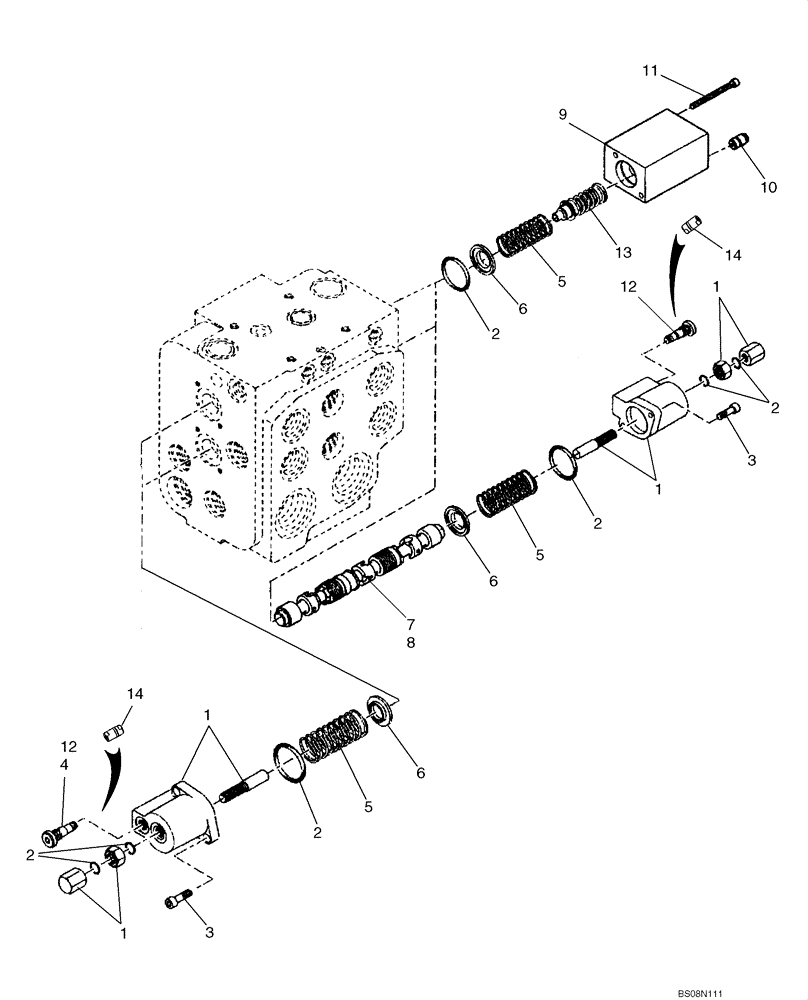

Запчасти Case 721F (35.724.02[02]) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (Z-BAR) (35) - HYDRAULIC SYSTEMS

87539262

HYDRAULIC VALVE

Incl. 1 -13; Fig. 35.724.02 (01)

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

3шт.

2

8602927

SEAL KIT

Load Sensing Control Bl

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

4

8602924

CARTRIDGE

M12 x 1,5

3шт.

5

8602917

SPRING

4шт.

6

8602918

RETAINER

Spring

5шт.

7

87311763

SPOOL

Bucket; Lower Spool

1шт.

8

8602895

SPOOL

Boom; Upper Spool

1шт.

9

87311762

COVER

Component Parts Not Serviced Separately

1шт.

10

8604578

CHECK VALVE

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

12

87311766

PLUG

2шт.

13

87311768

SPRING

Compression for Float

1шт.

14

8604578

CHECK VALVE

Throttle Check

1шт.
