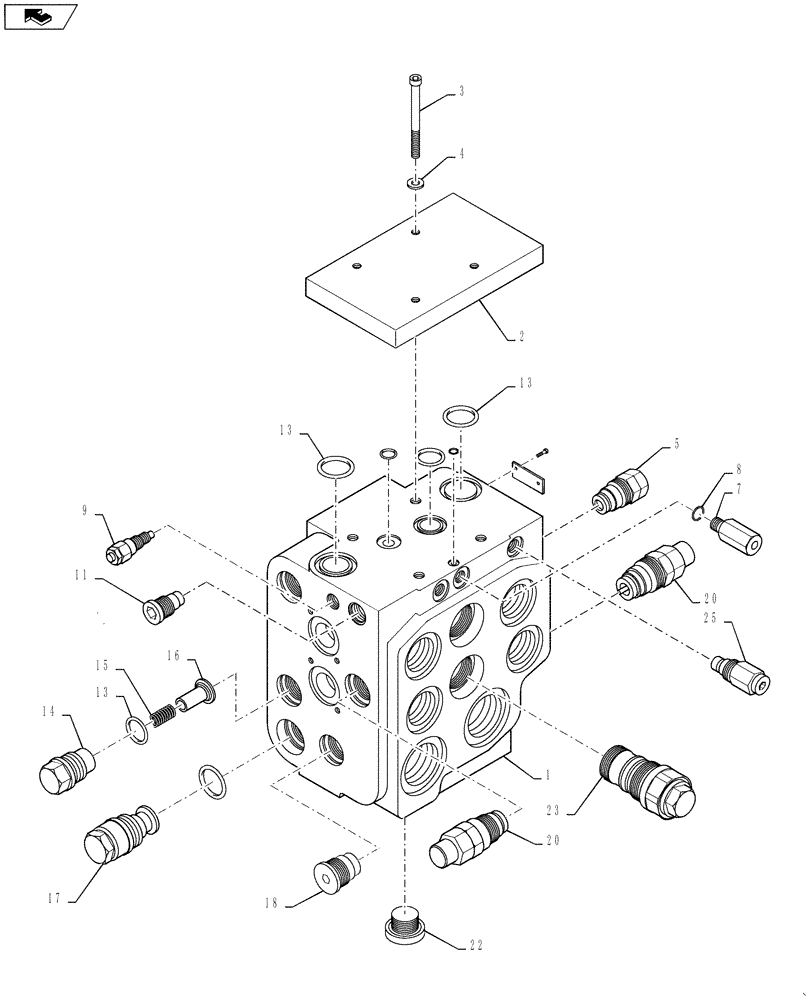

Запчасти Case 721F (35.724.02[01]) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (Z-BAR) (35) - HYDRAULIC SYSTEMS

1

87539262

HYDRAULIC VALVE

Two Spool; Incl. 1 - 26; Includes Spool Assembly On Fig. 35.724.02(02); Z-Bar Loader Models, If Used

1шт.

2

8602896

COVER

Cover

1шт.

3

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

screw

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

8602904

PILOT VALVE

Anti- Cavitation, Inc 6

1шт.

6

8602905

SEAL KIT

Anti-Cavitation

1шт.

7

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

1шт.

9

8602925

VALVE PRESSURE RELIE

Pressure Relief Valve, Inc 10

1шт.

10

8602926

SEAL KIT

Pressure Relief Valve

1шт.

11

8602915

HYDRAULIC VALVE

Flow Limiting Valve, Inc 12

1шт.

12

8602916

SEAL KIT

Flow Limiting Valve

1шт.

13

8602927

SEAL KIT

Load Sensing Control Block

1шт.

14

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

2шт.

15

8602921

SPRING

Compression

2шт.

16

8602920

CONE

2шт.

17

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

18

8602902

LOCK SCREW

Inc. 19

1шт.

19

8602903

SEAL KIT

Lock Screw

1шт.

20

8602906

HYDRAULIC VALVE

Combined Relief and Anti-Cavitation Valve.Inc 21

2шт.

21

8602907

SEAL KIT

Relief and Anti-Cavitation

1шт.

22

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

2шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation Valve, Inc 24

2шт.

24

8602901

SEAL KIT

Pilot Relief and Anti-Cavitation

1шт.

25

8602913

HYDRAULIC VALVE

Flow Limiting Valve, Inc 26

1шт.

26

8602914

SEAL KIT

Flow Limiting Valve

1шт.
