Запчасти Case 721F (35.701.06) - HYDRAULICS - RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

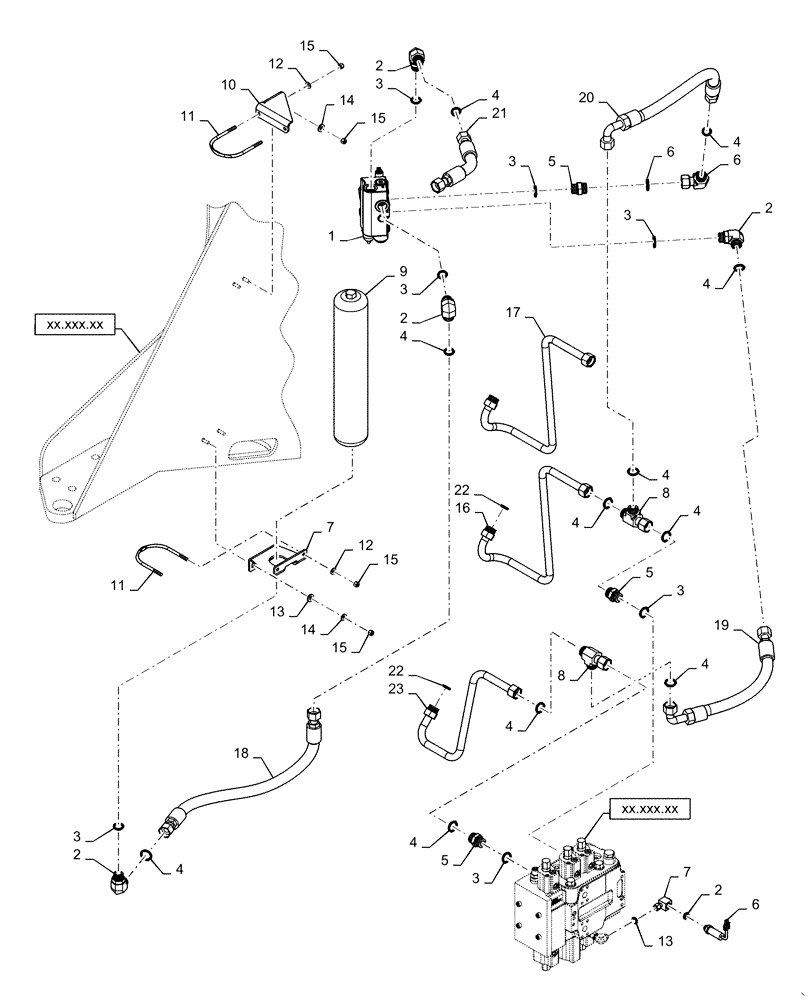

Схема запчастей Case 721F - (35.701.06) - HYDRAULICS - RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
6
10
4
11
15
22
4
17
2
7
3
xx.xxx.xx
13
23
14
6
15
9
6
3
4
22
14
4
7
4
5
3
3
18
12
3
2
16
4
2
8
2
4
19
3
4
11
3
xx.xxx.xx
21
12
4
1
15
4
15
5
8
13
2
5
4
20

Артикул

Название

Примечание

Количество

1

84494281

HYDRAULIC VALVE

Ride Control, RSM2-16

1шт.

2

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 3 - 4

4шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

7шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Face Seal

14шт.

5

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 3 - 4

3шт.

6

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Incl 4

1шт.

7

87393646

BRACKET

Accumulator, Gray

1шт.

8

86641295

TEE,1-7/16"-12 ORFS to Swivel

Incl 4

2шт.

9

87393434

ACCUMULATOR,3.8L

Ride Control, Black

1шт.

10

87403347

BRACKET

Accumulator, Gray

1шт.

11

87492028

U-BOLT

Metric, M10 x 1.5 Thread

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15012

WASHER,M12 x 28 x 2.5

8шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

16

87442545

HYD TUBE,25 mm DIA

Lift Rod RH, Z-Bar Models

1шт.

17

87442547

HYD TUBE,25 mm DIA

Lower RH

1шт.

18

87442515

FLEXIBLE HOSE

Ride Control Accumulator, 903mm ( 35 1/2 in)

1шт.

19

87442516

FLEXIBLE HOSE

Ride Control, Base, 618mm ( 24 5/16 in )

1шт.

20

87305431

FLEXIBLE HOSE

Ride Control, Rod, 791mm ( 31 1/8 in )

1шт.

21

87442518

FLEXIBLE HOSE

Ride Control,Tank, 330mm ( 13 in )

1шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

23

87307826

HYD TUBE

Lift Base RH

1шт.

23

87307827

HYD TUBE

Lift Base RH

1шт.

Выбрано товаров: 24
