Запчасти Case 721F (35.701.03) - HYDRAULICS - AUXILIARY XT (35) - HYDRAULIC SYSTEMS

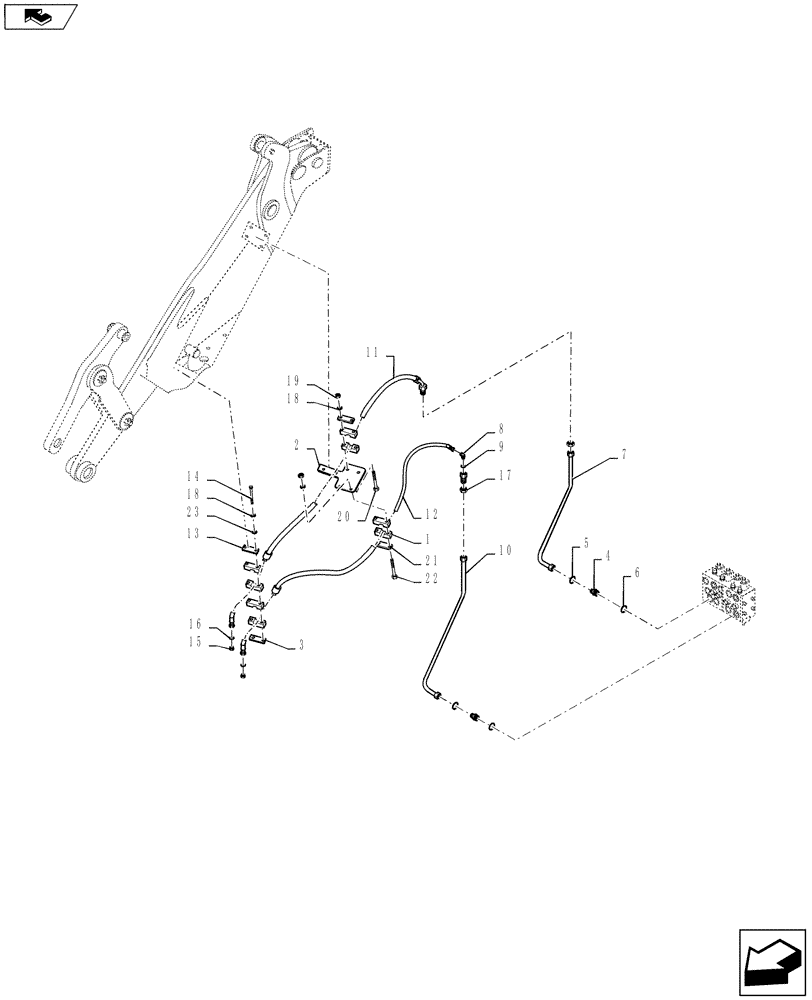

Схема запчастей Case 721F - (35.701.03) - HYDRAULICS - AUXILIARY XT (35) - HYDRAULIC SYSTEMS
20
22
4
17
2
16
7
1
9
5
15
11
home
18
3
10
23
6
14
12
8
13
18
21
19

Артикул

Название

Примечание

Количество

1

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

2

87444440

BRACKET

Hose Mounting

1шт.

3

372453A1

BLOCK

Tube Mounting

2шт.

4

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes Ref. 5-6

2шт.

5

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

7

87440537

HYD TUBE,25 mm OD x 780, 359 mm L

XT Accessory Plated

1шт.

8

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Includes Ref. 9

2шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

15/16 x 1-1/16 x 1/16

2шт.

10

87440540

HYD TUBE,25 mm OD x 949, 434 mm L

XT Accessory Plated

1шт.

11

87436860

FLEXIBLE HOSE

3/4"ID X 90"LG With Ends

1шт.

12

87436863

FLEXIBLE HOSE

3/4"ID X 87"LG With Ends

1шт.

13

367658A1

PLATE

Clamp Cover Plated

1шт.

14

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

15

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Includes Ref. 16

2шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

Hex, Self-locking, VM10 , 8, A3C, DIN 980

6шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

21

2781782

PLATE

Clamp

2шт.

22

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

23

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

Выбрано товаров: 23
