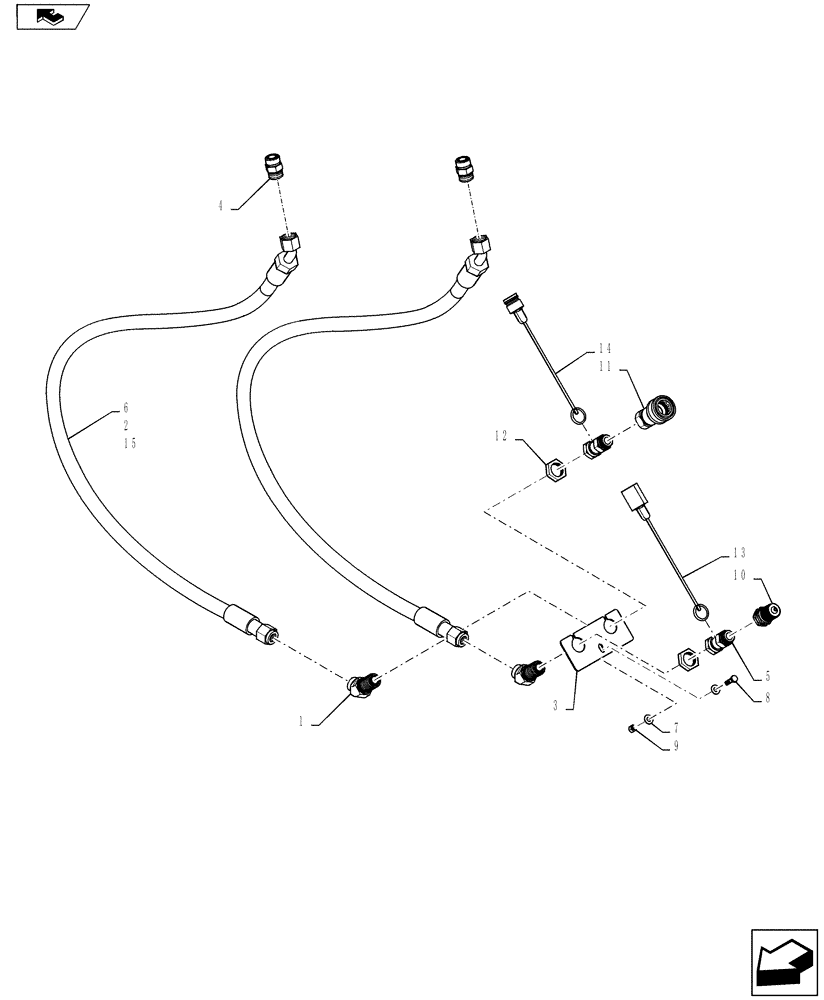

Запчасти Case 721F (35.701.01) - HYDRAULICS - GRAPPLE BUCKET (35) - HYDRAULIC SYSTEMS

1

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

2шт.

2

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

3

84215434

RETAINING PLATE

Bracket

1шт.

4

84100407

UNION,1-3/16"-12 ORFS

2шт.

5

84215429

FITTING

Parker 12F65OL

2шт.

6

84215432

HOSE ASSY.

1909 mm, Bucket Control, Incl 2, 15

2шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

9

86528579

NUT,M8 x 1.25

1шт.

10

84215408

FITTING

Quick Coupler, Nipple

1шт.

11

84215410

FITTING

Quick Coupler, Fitting

1шт.

12

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

13

114531A1

COUPLING

Quick Disconnect, Male, Incl Dust Cap

1шт.

14

84215429

FITTING

Quick Disconnect, Female, Incl Dust Cap

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
