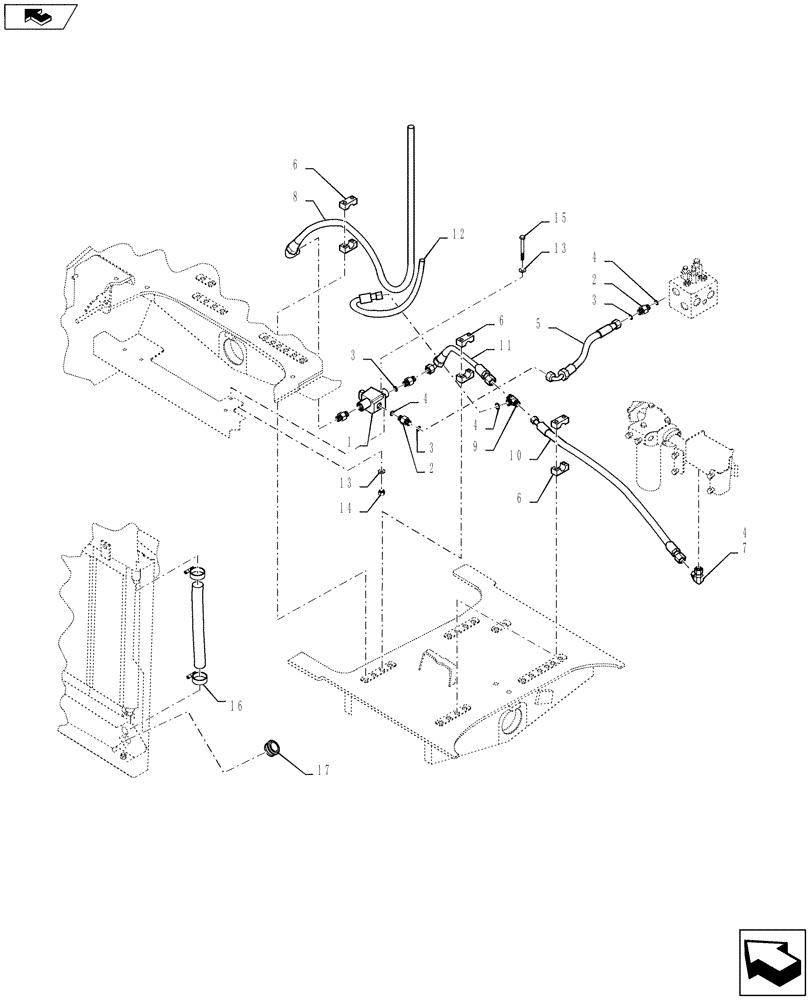

Запчасти Case 721F (35.310.02) - HYDRAULICS - THERMAL BYPASS (35) - HYDRAULIC SYSTEMS

1

87326981

BY-PASS VALVE

Thermal Bypass; With M27 Thread Ports; No Service Breakdown Available

1шт.

87328377

REPAIR KIT

For 87326981 Thermal Bypass Valve; Contains; Thermal Element Assy And Seals

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 3-4

1-4шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Not Illustrated

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Not Illustrated

1шт.

6

87617171

HOSE ASSY.

Fan To Bypass; 457 mm ( 18 in. ) Replaces 87453782, Used on Some Models

1шт.

6

367489A1

BLOCK

Tube Mounting

3шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 4

1шт.

8

87362185

HOSE ASSY.

Bypass to Cooler; 1897mm ( 75 in )

1шт.

9

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 4

1шт.

10

87453786

FLEXIBLE HOSE

Junction To Filter; 1025mm ( 40-1/3 in )

1шт.

11

87453784

FLEXIBLE HOSE

Bypass To Junction; 580mm ( 22-7/8 in )

1шт.

12

87398129

HOSE ASSY.

Cooler To Junction; 691mm ( 27 in )

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

16

328186A1

HOSE CLAMP

Constant Torque

2шт.

17

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

25.4 ID

2шт.
