(35.300.03) - HYDRAULIC OIL FILTER ASSEMBLY

Запчасти Case 721F (35.300.03) - HYDRAULIC OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS

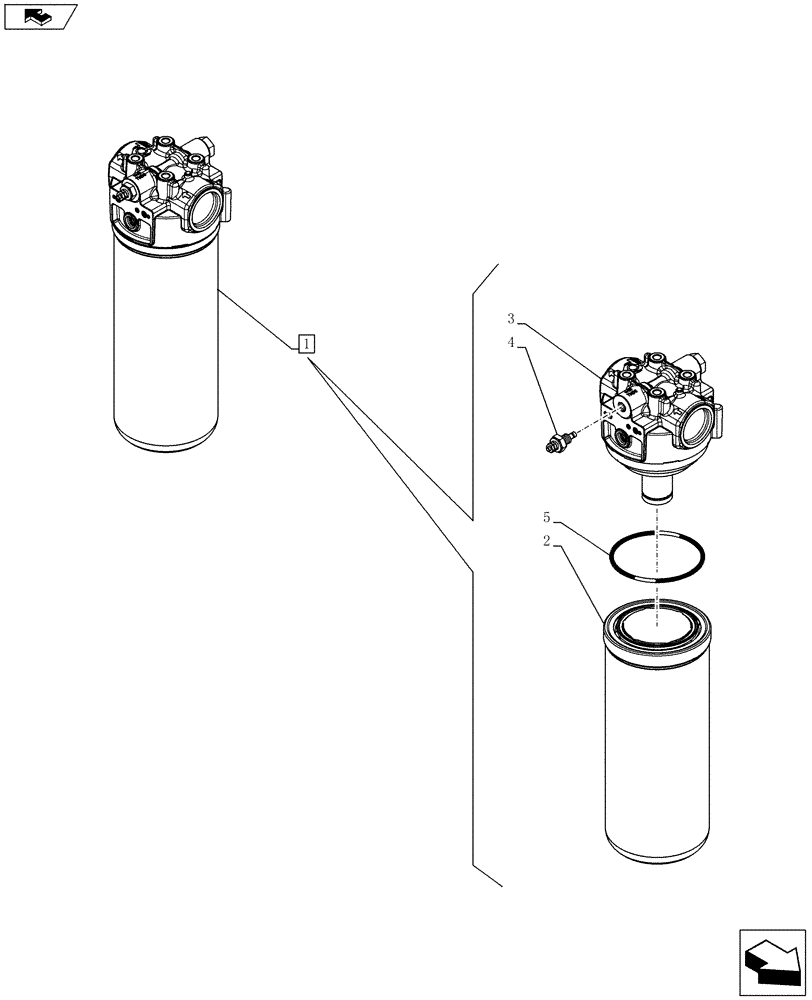

Схема запчастей Case 721F - (35.300.03) - HYDRAULIC OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS
home
1
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Order by Component

1шт.

2

84196445

HYDRAULIC OIL FILTER

FILTER, Hydraulic Oil Spin On, 11.63"

1шт.

3

84353610

FILTER HEAD

ASSEMBLY, Head

1шт.

4

8604802

PRESSURE SWITCH

Indicator Assembly

1шт.

5

NSS

NOT SOLD SEPARAT

Incl in 2

1шт.
