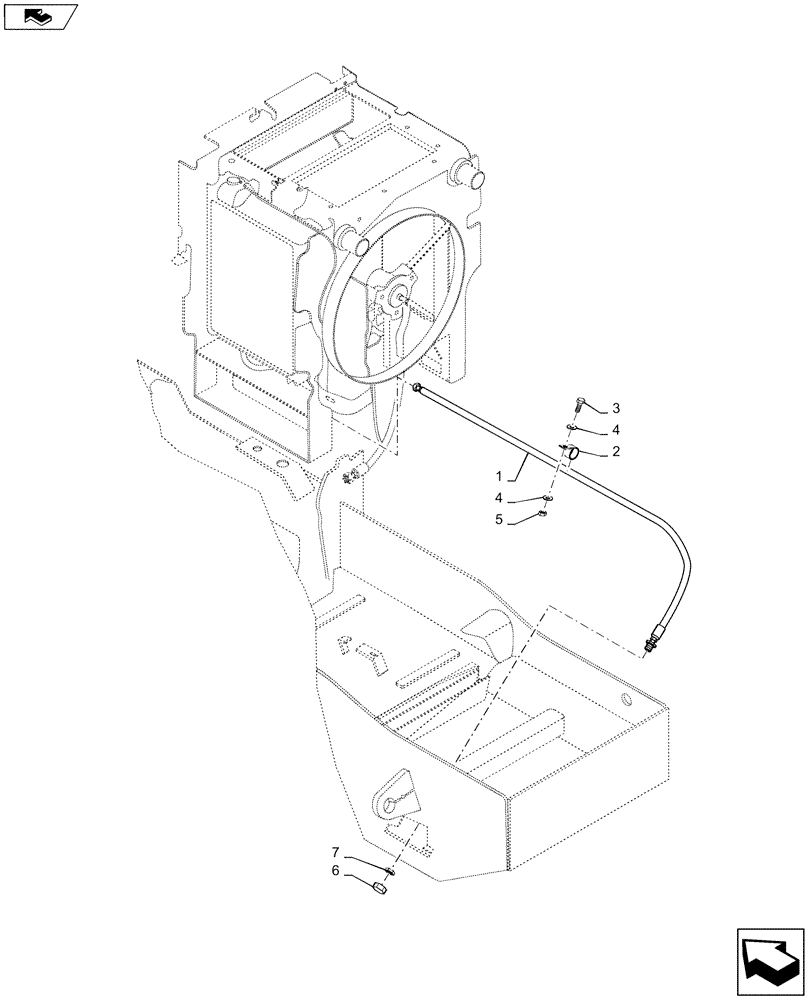

Запчасти Case 721F (35.300.02[04]) - HYDRAULIC RESERVOIR - DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

84240223

HOSE,19.05mm ID x 1592mm L

Hydraulic Tank Drain

1шт.

2

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

219606

CAP,1-1/16" - 12 JIC

Drain

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.
