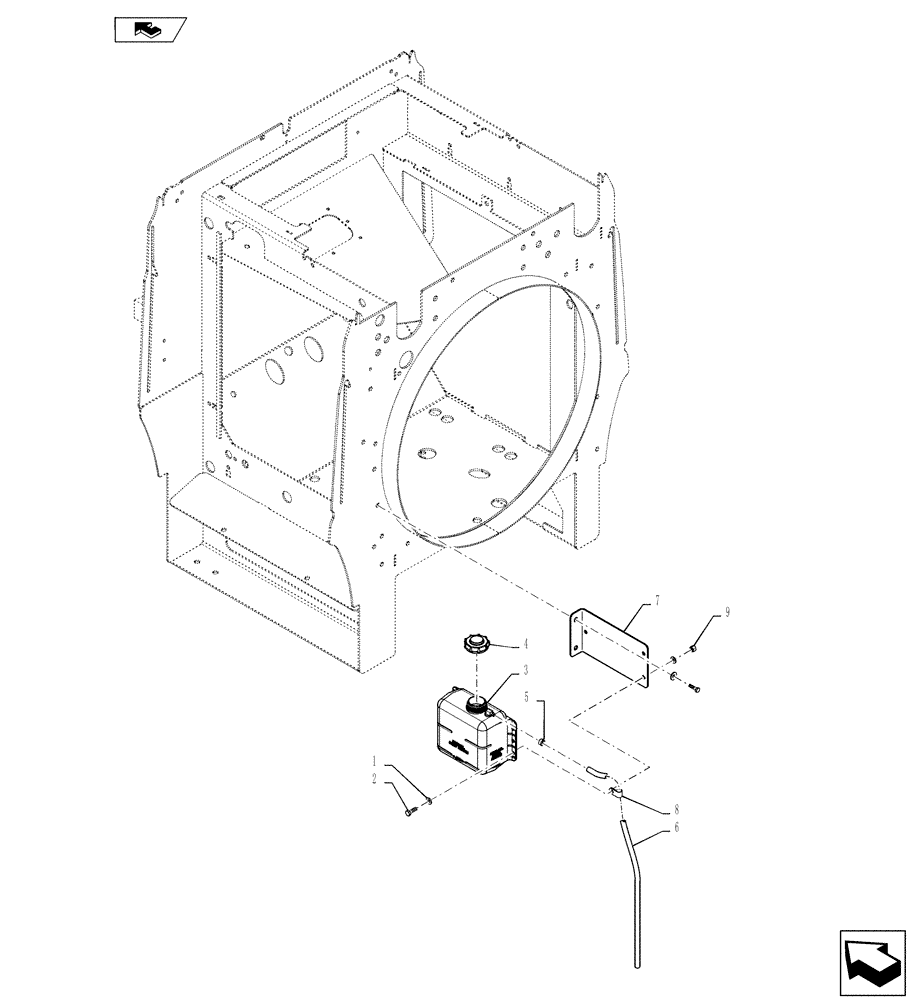

Запчасти Case 721F (35.300.02[03]) - COOLANT RECOVERY SYSTEM (35) - HYDRAULIC SYSTEMS

1

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

2

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

3

A184395

RESERVOIR

Coolent Recovery

1шт.

4

440729A1

FILLER CAP

Cooler Recovery Bottle

1шт.

5

A171099

HOSE CLAMP,13.2mm - 15.4mm

2шт.

6

87541330

HOSE,7.90 mm ID x 695.00 mm

Drain

1шт.

7

87585139

BASE PLATE

Overflow Tank

1шт.

8

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

86528579

NUT,M8 x 1.25

3шт.
