Запчасти Case 721F (35.300.02[02]) - HYDRAULICS - RESERVOIR, FILTER (35) - HYDRAULIC SYSTEMS

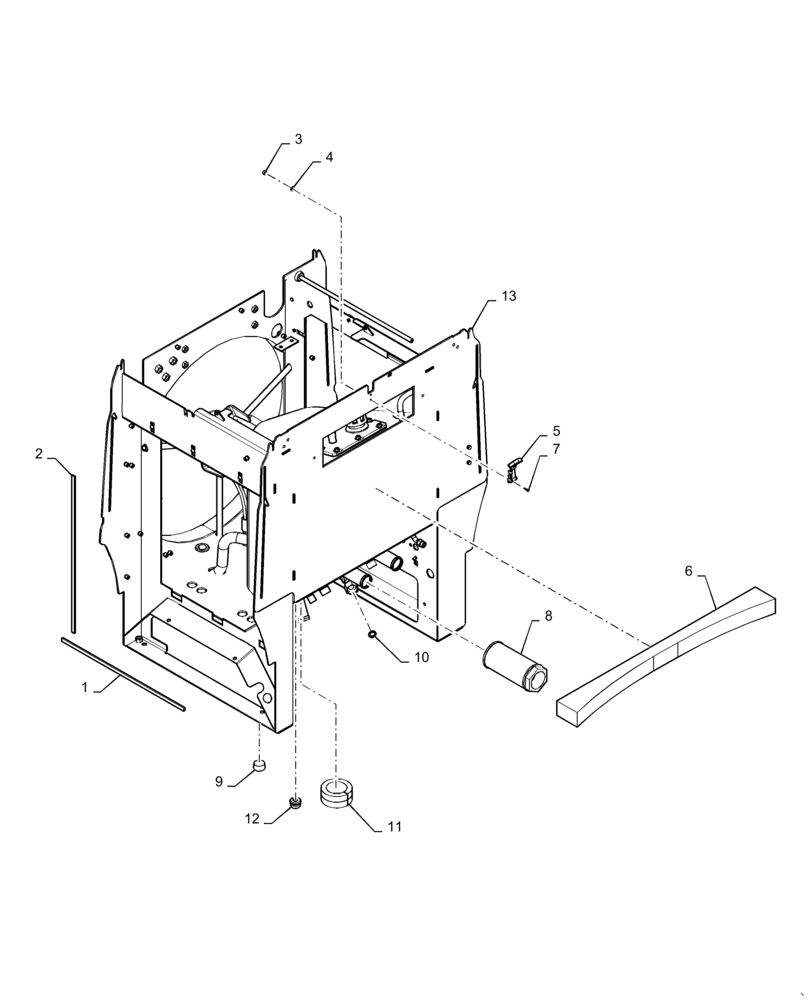

Схема запчастей Case 721F - (35.300.02[02]) - HYDRAULICS - RESERVOIR, FILTER (35) - HYDRAULIC SYSTEMS
11
12
7
8
5
1
9
3
13
2
6
10
4

Артикул

Название

Примечание

Количество

1

87312068

OIL SEAL

Oil Cooler, Header, 630mm (24-13/16"), Cut From 198573C1 Bulk

2шт.

2

8500133

OIL SEAL

Oil Cooler, Side, 698mm (27-1/2"), Cut From 198573C1 Bulk

2шт.

3

87016571

NUT,M5, Cl 5

2шт.

4

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

5

76082761

LATCH

Flexible Draw

1шт.

6

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

Oil Cooler, Foam

1шт.

7

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

8

L128515

STRAINER ELEMENT

Hydraulic Tank

2шт.

8

47575681

FILTER STRAINER

, Start Year: 01-AUG-13

1шт.

9

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

.062 x .938in. Class 6

1шт.

11

76088563

SEAL

Charge Air Tubes

1шт.

12

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

13

84528084

FRAME

Cooling

1шт.

13

47542309

FRAME

Cooling, Start Year: 01-AUG-13

1шт.

Must use New Strainer 47575681

1шт.

Выбрано товаров: 16
