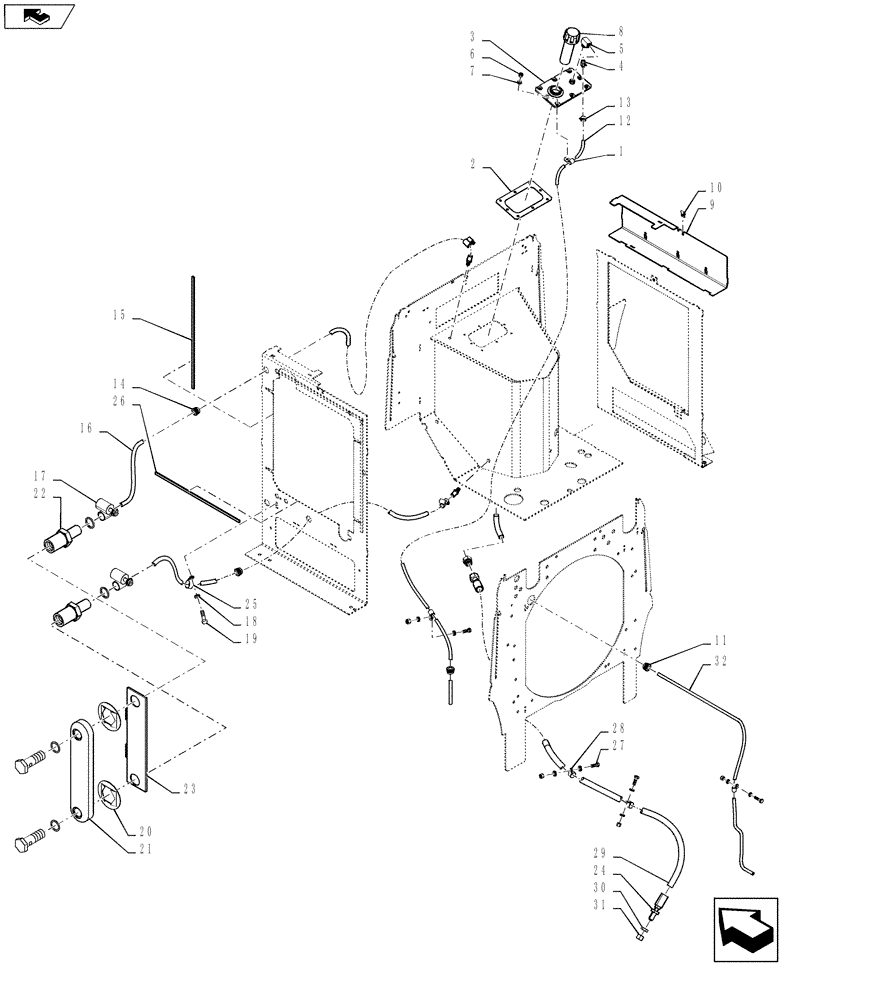

Запчасти Case 721F (35.300.02[01]) - HYDRAULICS - RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

2

76082628

GASKET,3.2mm Thk

Hydraulic Tank

1шт.

3

8606005

CAP

Hydraulic Tank

1шт.

4

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

5

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

6

86528579

NUT,M8 x 1.25

10шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

9

307149A1

HOSE,7.9 mm ID x 1676.40 mm

Recovery Bottle

1шт.

8

87757884

FILLER CAP

1шт.

10

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

M8 ZN

10шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

12

31-2940

FUEL HOSE

Fuel, 3/8 x 56 Lg.

1шт.

13

86625022

HOSE CLAMP,6.3mm - 15.7mm

1шт.

14

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

15

8500136

SEAL

Radiator Side

2шт.

16

8500164

HOSE

Sight Gauge, Upper

1шт.

17

244358

HOSE CLIP,0.44" - 0.78"

4шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

3шт.

19

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

20

131-141

PUSH-ON NUT,.74", Push-on

2шт.

21

86988366

SIGHTGLASS

1шт.

22

L125836

FITTING

Sight Gauge

2шт.

23

87493002

BRACKET

Sight Gauge

1шт.

24

368222A1

HOSE,7.90 mm ID x 3327.40 mm

Fuel Tank to Engine

1шт.

25

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

26

87312068

OIL SEAL

Oil Cooler Header, Foam

2шт.

27

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

28

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

29

84240223

HOSE,19.05mm ID x 1592mm L

Hydraulic Tank, Drain

1шт.

30

219606

CAP,1-1/16" - 12 JIC

1шт.

31

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

32

87541330

HOSE,7.90 mm ID x 695.00 mm

1шт.
