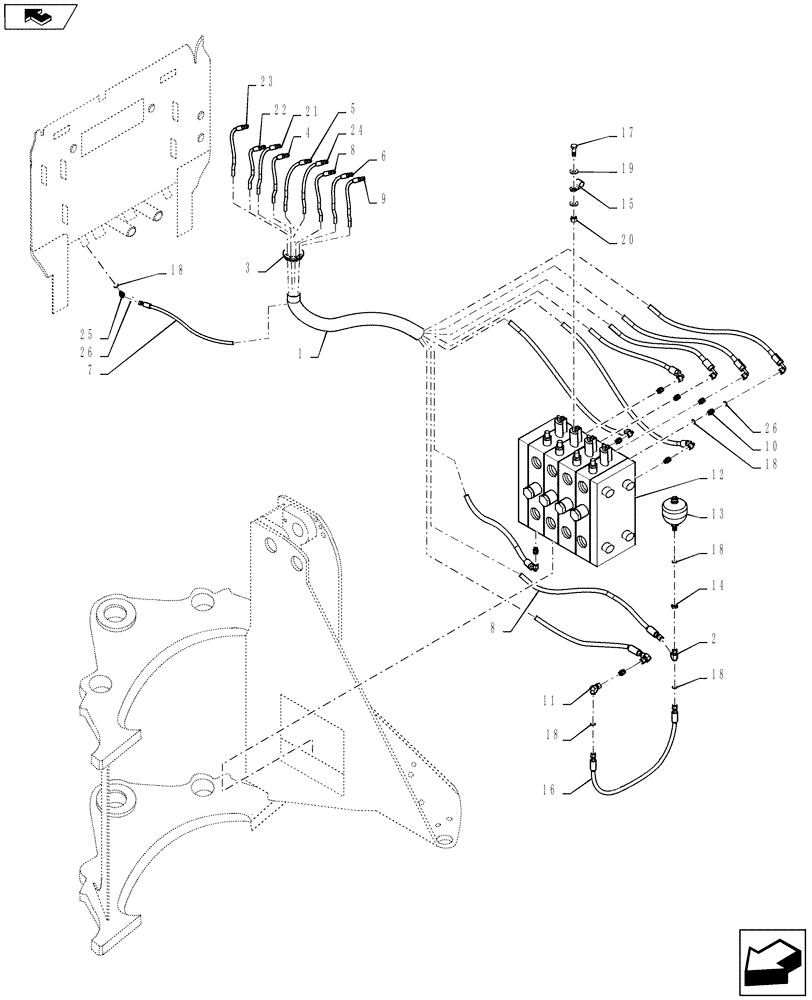

Запчасти Case 721F (35.160.01) - LOADER CONTROL LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87333783

HOSE PROTECTION,80.00 mm ID x 1254.00 mm

1шт.

2

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

3

84385656

GROMMET

Hose Mounting

2шт.

4

87375607

HOSE ASSY.

Pilot, Raise

1шт.

5

87375605

HOSE ASSY.

Pilot, Rollback

1шт.

6

87375604

HOSE ASSY.

Pilot, Dump

1шт.

7

87351224

HOSE ASSY.

Pilot, Tank

1шт.

8

87375609

HOSE ASSY.

Pilot, Pressure

1шт.

9

84291423

HOSE ASSY.,9.53mm ID x 2424mm L, SAE 100R1

Third Spool Pilot Up

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

4шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

2шт.

12

391859A1

VALVE, CHECK

1шт.

13

8501047

ACCUMULATOR

Pilot Supply

1шт.

14

701-909

NUT,11/16" - 16

1шт.

15

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

16

8500411

FLEXIBLE HOSE

Pilot Accumulator

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

21

87375602

HOSE ASSY.

Third Spool Pilot

1шт.

22

87376486

HOSE ASSY.

Fourth Spool Pilot

1шт.

23

87375601

HOSE ASSY.

Fourth Spool Pilot

1шт.

24

87375606

HOSE ASSY.

Pilot, Lower

1шт.

25

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

26

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.
