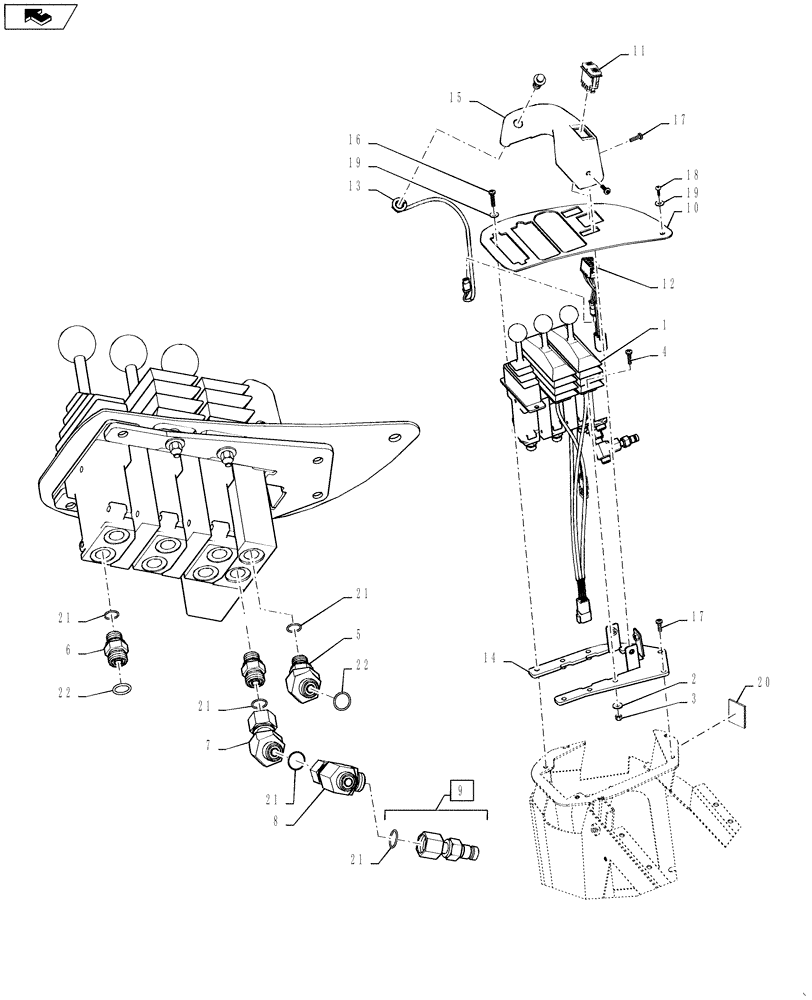

Запчасти Case 721F (35.108.01) - LOADER CONTROL - THREE LEVER MOUNTING (35) - HYDRAULIC SYSTEMS

1

407869A2

VALVE, CONTROL

Three Lever With Three Spool Valve

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21 - 22

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21 - 22

7шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 21

1шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 21

1шт.

9

190119A1

COUPLING

Incl 21

1шт.

10

87515559

BEZEL

3 Lever, Case

1шт.

11

400833A2

SWITCH

Rocker, Forward/Neutral/Reverse

1шт.

12

87324389

WIRE HARNESS

Forward/Neutral/Reverse Switch

1шт.

13

402390A1

SWITCH

Push Button, Downshift

1шт.

14

87534053

BRACKET

Single Axis Controller

1шт.

15

87523729

COVER

Tower

1шт.

16

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

17

540-719

SCREW,Cross Pan Hd, M6 x 20

6шт.

18

1270762C1

SELF-TAP SCREW

1шт.

19

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

20

87536093

DECAL

3 Lever Control

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

8шт.
