Запчасти Case 721F (33.202.04) - BRAKE LINE INSTALLATION - HD AXLES (33) - BRAKES & CONTROLS

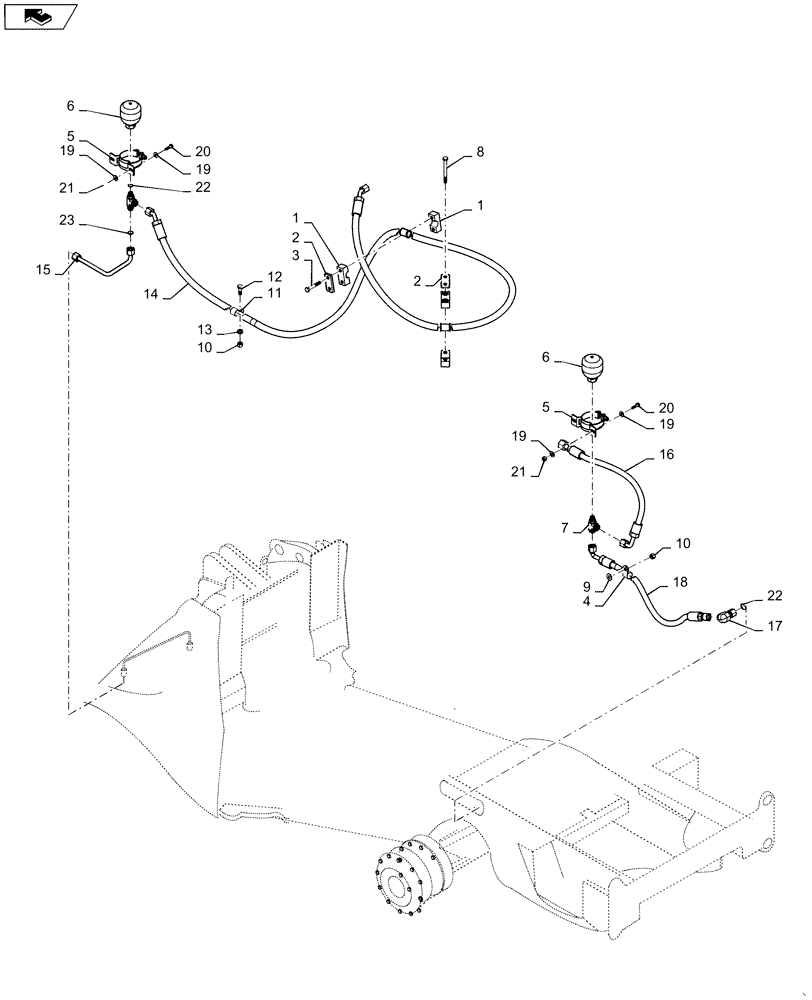

Схема запчастей Case 721F - (33.202.04) - BRAKE LINE INSTALLATION - HD AXLES (33) - BRAKES & CONTROLS
19
9
12
19
14
8
10
18
22
4
20
21
1
13
11
2
23
5
10
15
6
6
19
7
1
21
17
2
5
20
3
home
19
22
16

Артикул

Название

Примечание

Количество

1

367489A1

BLOCK

Tube Mounting

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

4

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

5

84272713

CLAMP,73mm - 79mm

Accumulator

2шт.

6

84393492

ACCUMULATOR

Brake Damping

2шт.

7

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl.Ref. 22, 23

2шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

84420976

HOSE ASSY.

Brake Supply, Front

1шт.

15

84280370

HYD TUBE

Brake Supply, Front

1шт.

16

84272711

HOSE ASSY.

Rear Brake Supply, Accumulator

1шт.

17

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 22

1шт.

18

84272714

HOSE ASSY.

Rear Brake Supply, Axle

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
