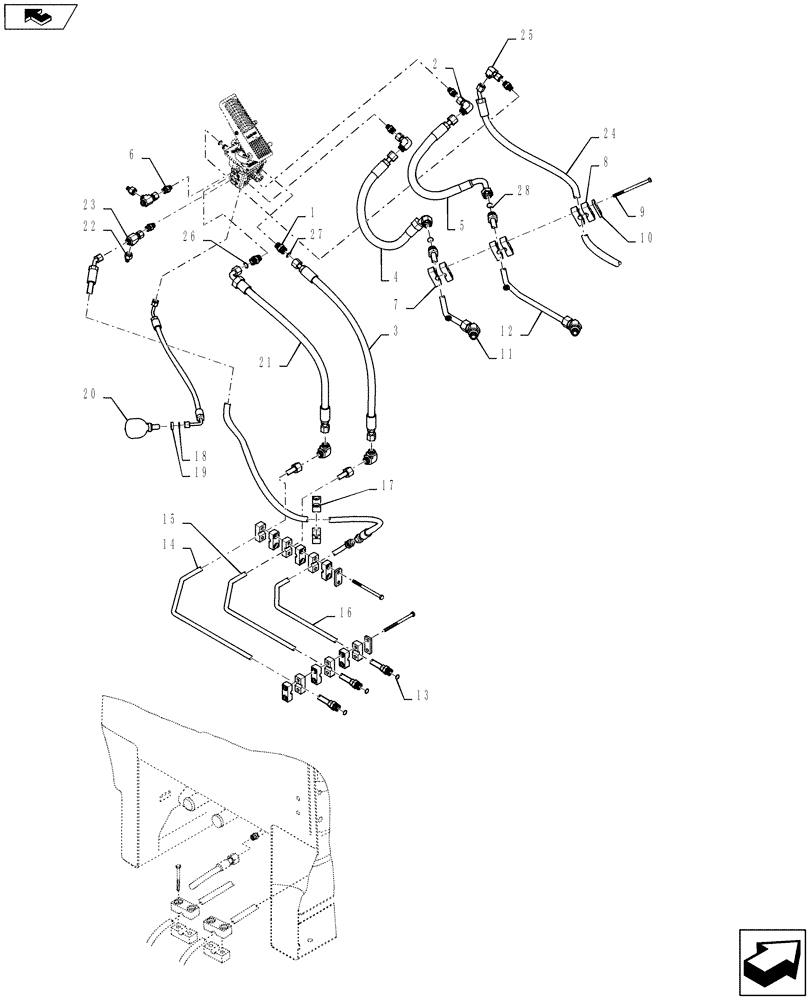

Запчасти Case 721F (33.202.02[04]) - HYDRAULICS - MAIN BRAKE - RESERVOIR (33) - BRAKES & CONTROLS

1

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22 ORFS x 1.5 x 1 14"; Includes 13, 26

2шт.

2

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

2шт.

3

84300560

FLEXIBLE HOSE

Brake Valve Supply

1шт.

4

84308885

FLEXIBLE HOSE

Front Brake Accumulator, Serial Range: -NEF221608

1шт.

4

47574949

HOSE

Front Brake Accumulator, Start Serial: NEF221609

1шт.

5

84308886

FLEXIBLE HOSE

Rear Brake Accumulator, Serial Range: -NEF221608

1шт.

5

47574950

HOSE

Rear Brake Accumulator, Start Serial: NEF221609

1шт.

6

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Includes 27-28

4шт.

7

76082618

BLOCK

Tube Mounting

2шт.

8

8501052

SPECIAL CLAMP

Block Tube Mounting

1шт.

9

86639150

BOLT,Hex, M10 x 150mm, Cl 10.9

2шт.

10

367658A1

PLATE

Clamp Cover

1шт.

11

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

12

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

14

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

15

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

16

84243185

TUBE

Rear Axle Brake

1шт.

17

76082265

BLOCK

Tube Mounting

2шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

87010704

BHD LOCK NUT,11/16"-16

1шт.

20

8500209

ACCUMULATOR

Parking Brake

1шт.

21

84300561

FLEXIBLE HOSE

Brake Valve Discharge

1шт.

22

190316A1

COUPLING

Diagnostic, 8F- ORFS x 13/16-16

2шт.

23

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Includes 29

2шт.

24

84489970

HOSE ASSY.

Return, Brake Valve To Tank

1шт.

25

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Includes 28

1шт.

26

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

27

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

29

84402125

HOSE ASSY.

Front Axle Brake

1шт.
