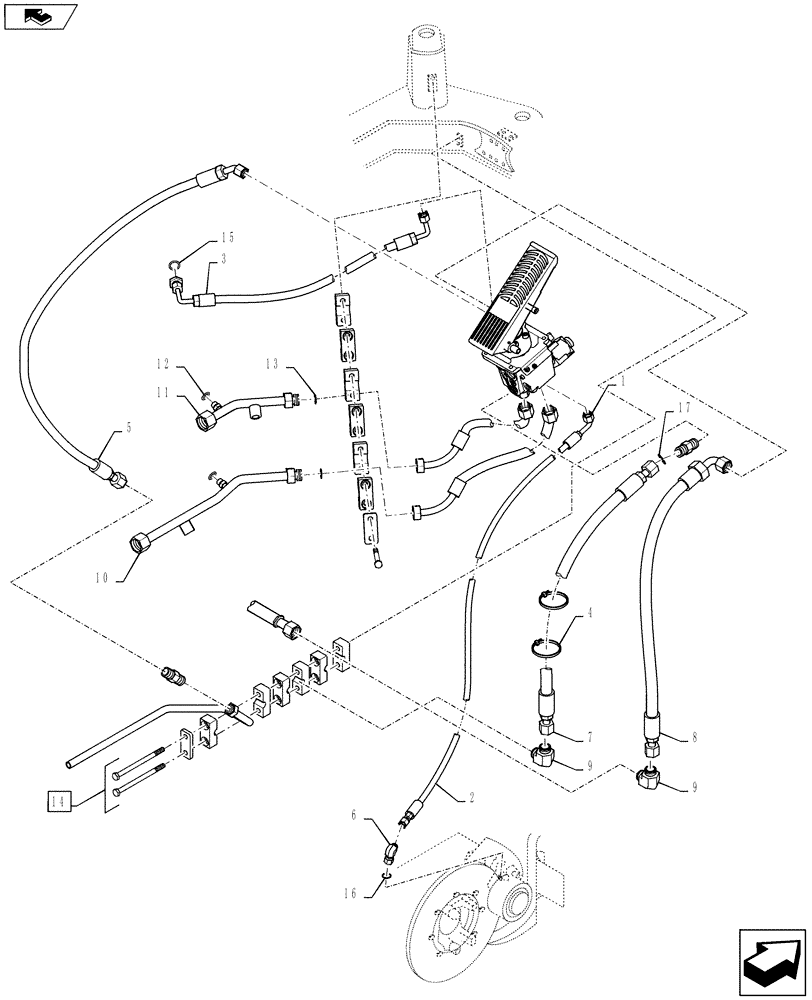

Запчасти Case 721F (33.202.02[03]) - HYDRAULICS - MAIN BRAKE - PARKING BRAKE (33) - BRAKES & CONTROLS

REF

INSTRUCTION

HYDRAULICS - MAIN BRAKE - PARKING BRAKE

1шт.

1

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes 15-16

2шт.

2

84373987

HOSE ASSY.

Parking Brake

1шт.

3

84362170

HOSE ASSY.

Parking Brake Accumulator

1шт.

4

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

5

87325999

HOSE ASSY.

Rear Axle Brake

1шт.

6

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Includes 12

1шт.

7

84300560

FLEXIBLE HOSE

Brake Valve Supply

1шт.

8

84300561

FLEXIBLE HOSE

Brake Valve Discharge

1шт.

9

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

90 Deg, 1-14" ORFS; Includes 17

2шт.

10

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

11

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

12

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

8500210

CLAMP

Block Tube Mounting

2шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
