Запчасти Case 721F (33.202.02[02]) - HYDRAULICS - MAIN BRAKE - ACCUMULATOR (33) - BRAKES & CONTROLS

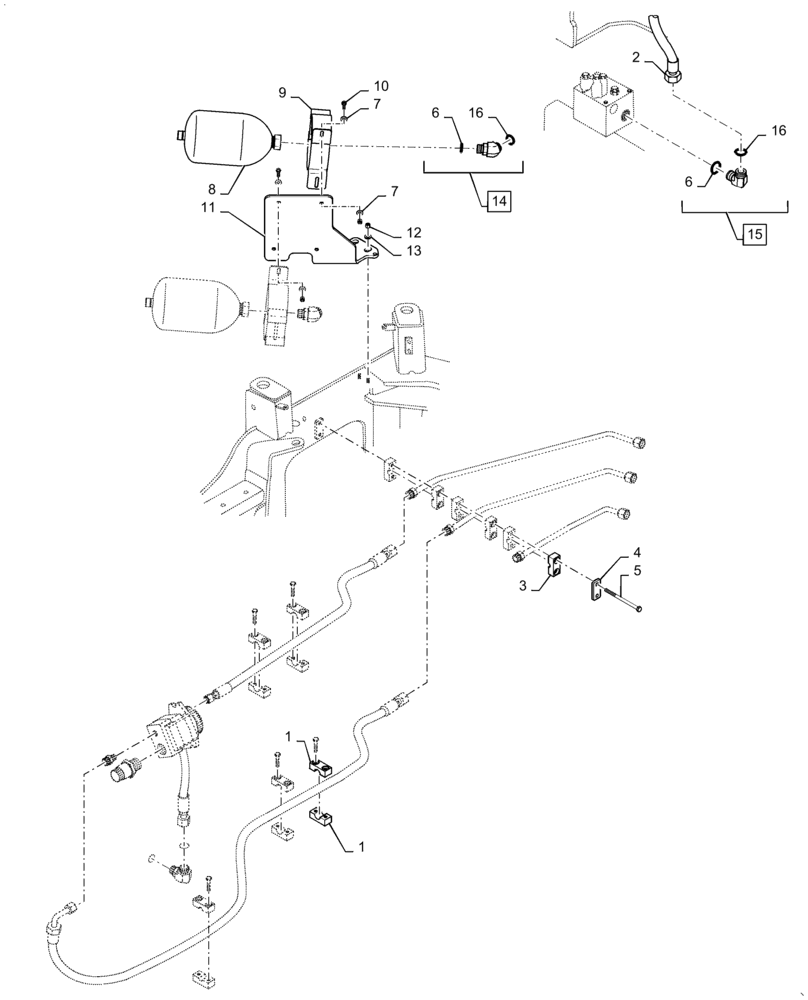

Схема запчастей Case 721F - (33.202.02[02]) - HYDRAULICS - MAIN BRAKE - ACCUMULATOR (33) - BRAKES & CONTROLS
4
2
11
1
16
16
3
13
6
7
6
1
5
9
14
7
15
10
8
12

Артикул

Название

Примечание

Количество

1

76082265

BLOCK

Tube Mounting

3шт.

2

84421910

HOSE ASSY.,15.88mm ID x 667mm L, SAE 100R17

Fan Supply

1шт.

3

8500210

CLAMP

Block Tube Mounting

4шт.

4

367658A1

PLATE

Clamp Cover

2шт.

5

86639150

BOLT,Hex, M10 x 150mm, Cl 10.9

4шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

87728740

ACCUMULATOR

Service Brake

2шт.

9

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

10

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

11

84295689

BRACKET, SUPPORTING

Brake Accumulator

1шт.

12

412126

NUT,M12 x 1.75

3шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

3шт.

14

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Includes 6, 16

2шт.

15

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Includes 6, 16

1шт.

16

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 16
