Запчасти Case 721F (33.202.02[01]) - HYDRAULICS - MAIN BRAKE - PUMP (33) - BRAKES & CONTROLS

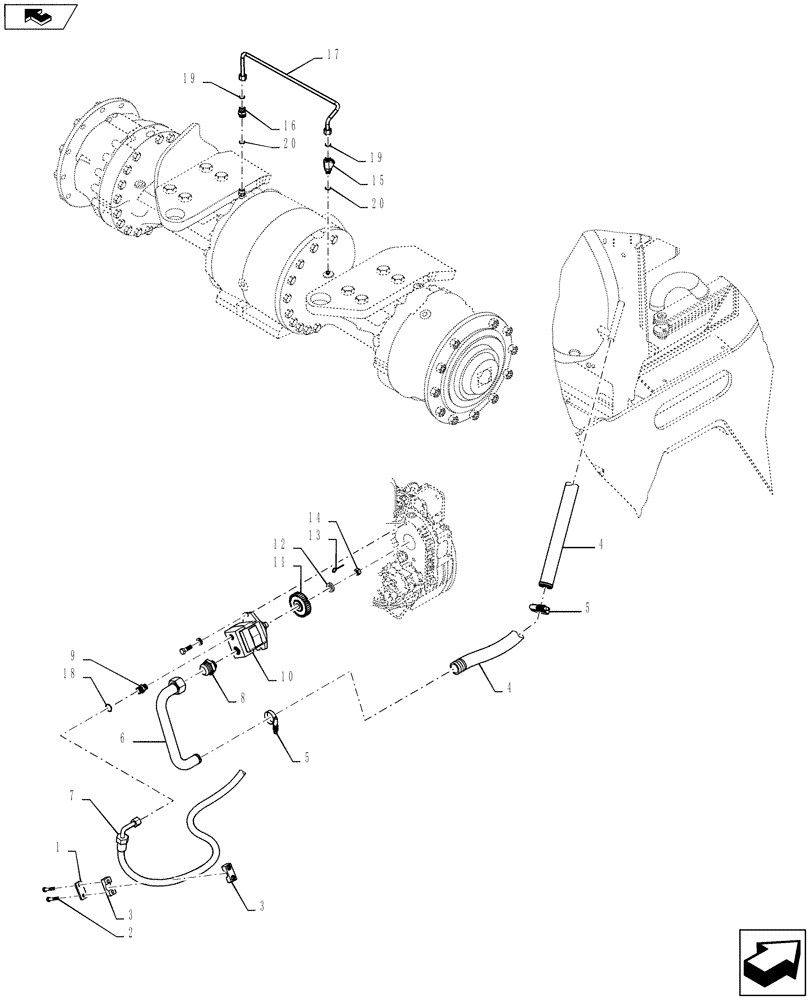

Схема запчастей Case 721F - (33.202.02[01]) - HYDRAULICS - MAIN BRAKE - PUMP (33) - BRAKES & CONTROLS
3
9
4
12
17
20
11
8
16
7
1
15
3
14
5
19
2
20
4
18
10
home
5
13
6
19

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULICS - MAIN BRAKE - PUMP

1шт.

1

367658A1

PLATE

Clamp Cover

1шт.

2

86508619

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

3

8606002

CLAMP

Tube Mounting

1шт.

4

87555557

HYDRAULIC HOSE

Pump Suction

1шт.

5

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque

2шт.

6

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

Assy

1шт.

7

84421909

HOSE ASSY.

Brake Pump Pressure

1шт.

8

87555427

HYD CONNECTOR

1 7/8"-12 x M33 x 2

1шт.

9

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1 14" ORFS x M22 x 1.5; Includes 18

1шт.

10

87342166

HYDRAULIC PUMP,23.6 CC

Brake 23cc, Serial Range: -NDF221195

1шт.

10

87342166R

REMAN-HYD PUMP

Brake 23cc

1шт.

10

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

10

47526503

HYDRAULIC PUMP

25CC, Start Serial: NDF221196

1шт.

10

47526503R

HYDRAULIC PUMP

25CC

1шт.

10

47526503C

PUMP

Return Number

1шт.

11

87389871

GEAR

Accessory Drive

1шт.

12

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

13

130005

COTTER PIN,M3.2 x 32

1шт.

14

87446

SLOTTED NUT,5/8"-18

1шт.

15

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Includes 19-20

1шт.

16

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Includes 19-20

2шт.

17

84304028

HYD TUBE

Front Axle

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 26
