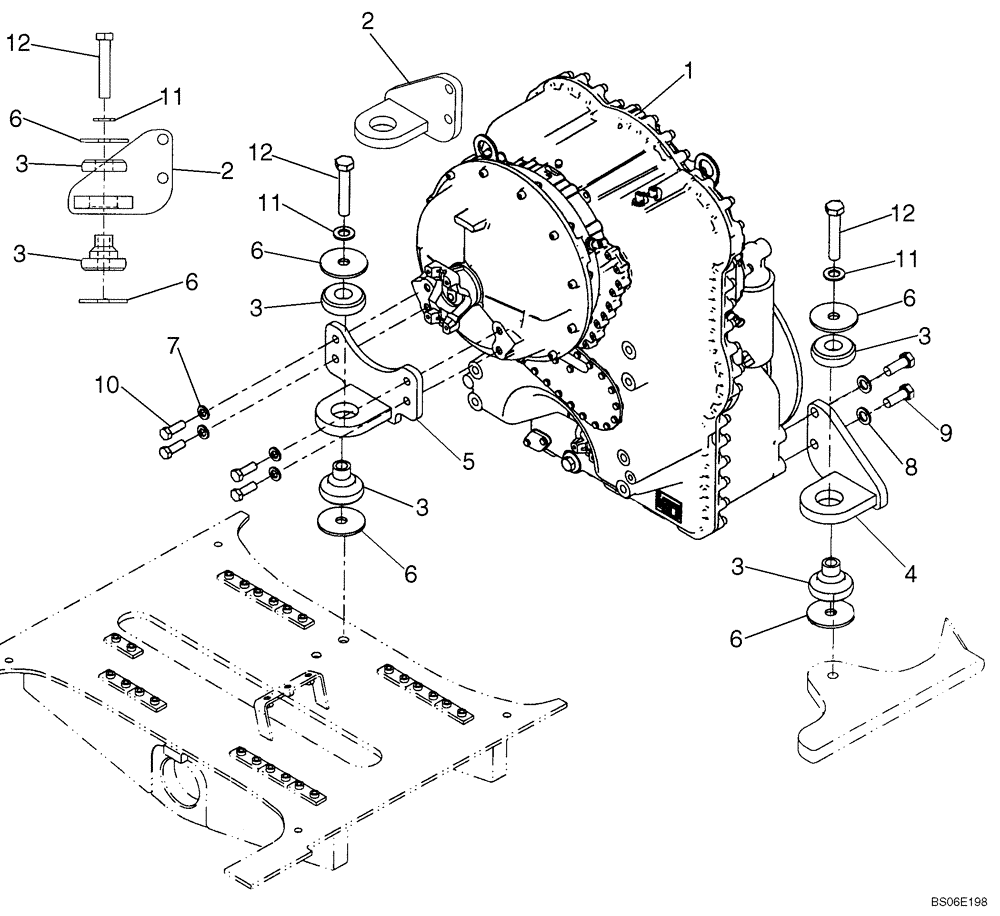

Запчасти Case 721F (21.116.01) - MOUNTING - TRANSMISSION 4 SPEED AND 5 SPEED (21) - TRANSMISSION

1

84234390

TRANSMISSION

4-Speed

1шт.

84234390R

REMAN-TRANSMISSION

721F - WHEEL LOADER TIER 4 (NA)

1шт.

84234390C

CORE-TRANSMISSION

Return Number

1шт.

1

84234370

TRANSMISSION

5-Speed

1шт.

84234371R

REMAN-TRANSMISSION

721F Tier 4 5 Speed, Reman For New P/N 84234370

1шт.

84234371C

CORE-TRANSMISSION

Return Number

1шт.

2

8500093

BRACKET

Left Hand

1шт.

3

361187A1

ISOLATOR

Transmission Mount

3шт.

4

8500094

BRACKET

Right Hand

1шт.

5

84227480

BRACKET, SUPPORTING

Top

1шт.

6

379611A1

WASHER

Transmission Mount

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.

12

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.
